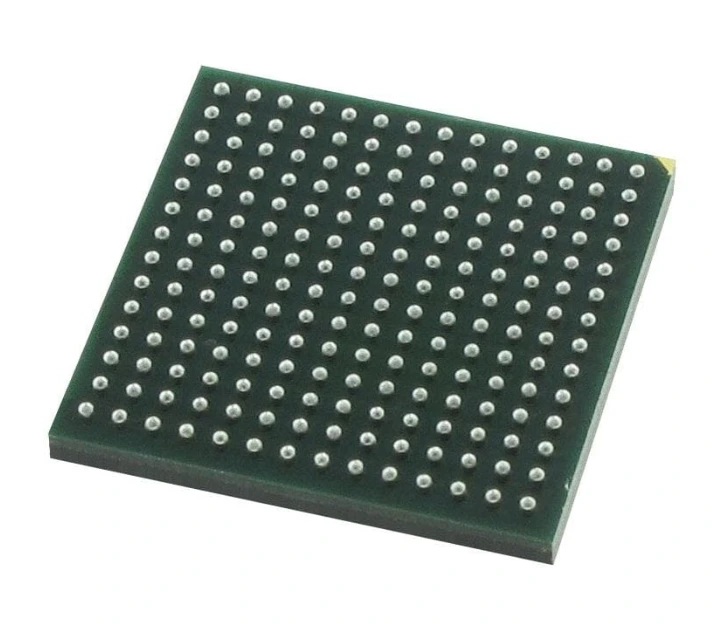

AD6688BBPZ-3000

Manufacturer::

Analog Devices Inc.

Factory Pack Quantity:

189

Package/Case:

BGA-196

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	Analog Devices Inc.
Product Category:	RF Receiver
RoHS:	Details
Type:	RF Diversity and Observation Receiver
Operating Frequency:	2.6 GHz
Maximum Operating Temperature:	+ 85 C
Minimum Operating Temperature:	- 40 C
Package / Case:	BGA-196
Mounting Style:	SMD/SMT
Packaging:	Tray
Bandwidth:	1.2 GHz
Brand:	Analog Devices
Development Kit:	AD6688-3000EBZ
Moisture Sensitive:	Yes
Product Type:	RF Receiver
Series:	AD6688
	189
Subcategory:	Wireless & RF Integrated Circuits
Supply Voltage - Max:	2.56 V
Supply Voltage - Min:	950 mV
Technology:	Si
Unit Weight:	0.652216 oz

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
