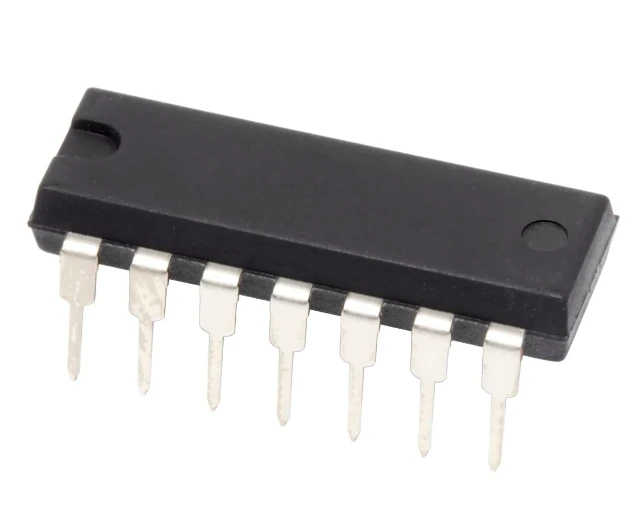

AD734ANZ

Part number:

AD734ANZ

Manufacturer::

Analog Devices Inc.

Factory Pack Quantity:

Package/Case:

PDIP-14

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	Analog Devices Inc.
Product Category:	Multipliers / Dividers
RoHS:	Details
Product:	Multipliers & Dividers
Number of Circuits:	1 Circuit
Package / Case:	PDIP-14
Supply Voltage - Max:	16.5 V
Supply Voltage - Min:	8 V
Mounting Style:	Through Hole
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Analog Devices
Height:	3.43 mm
Input Voltage:	12.5 V
Length:	16.89 mm
Operating Supply Current:	9 mA
Operating Supply Voltage:	8 V to 16.5 V
Output Current:	10 mA
Output Voltage:	12 V
Pd - Power Dissipation:	500 mW (1/2 W)
Product Type:	Multipliers / Dividers
Series:	AD734
	25
Subcategory:	Logic ICs
Width:	7.24 mm
Unit Weight:	0.057144 oz
