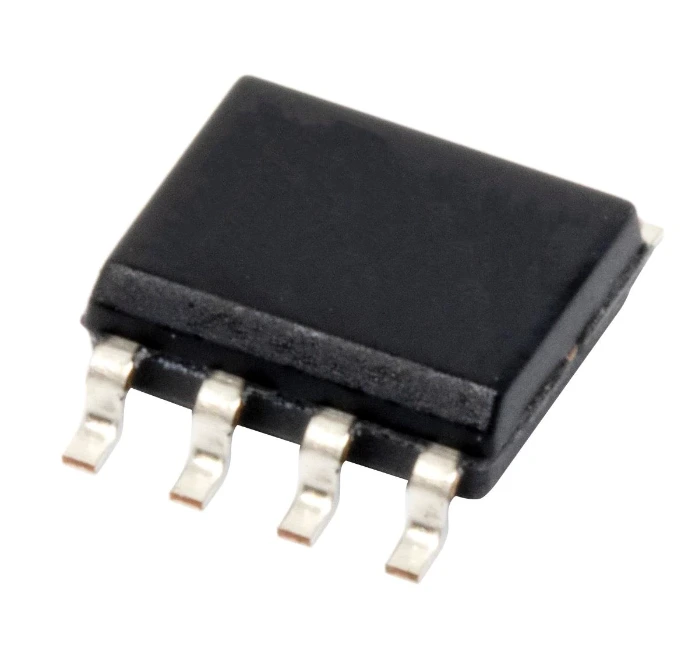

AD8599ARZ-REEL7
Part number:
AD8599ARZ-REEL7
Manufacturer::
Analog Devices Inc.
Factory Pack Quantity:
1000
Package/Case:
SOIC-8
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Write a Review
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Analog Devices Inc. | |
| Product Category: | Precision Amplifiers |
| RoHS: | Details |
| 2 Channel | |
| 10 MHz | |
| 14 V/us | |
| 10 uV | |
| 200 nA | |
| 30 V, 30 V | |
| 9 V, 9 V | |
| 5.7 mA | |
| 52 mA | |
| 140 dB | |
| 1.07 nV/sqrt Hz | |
| SOIC-8 | |
| SMD/SMT | |
| No Shutdown | |
| - 40 C | |
| + 125 C | |
| AD8599 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Analog Devices |
| Dual Supply Voltage: | +/- 15 V |
| Height: | 1.5 mm |
| Input Type: | Rail-to-Rail |
| Length: | 5 mm |
| Maximum Dual Supply Voltage: | 30 V |
| Minimum Dual Supply Voltage: | 9 V |
| Operating Supply Voltage: | 9 V to 30 V |
| Product: | Precision Amplifiers |
| Product Type: | Precision Amplifiers |
| PSRR - Power Supply Rejection Ratio: | 140 dB |
| 1000 | |
| Subcategory: | Amplifier ICs |
| Type: | General Purpose Amplifier |
| Voltage Gain dB: | 116 dB |
| Width: | 4 mm |
| Unit Weight: | 0.019048 oz |
Select at least one checkbox above to show similar products in this category.
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
