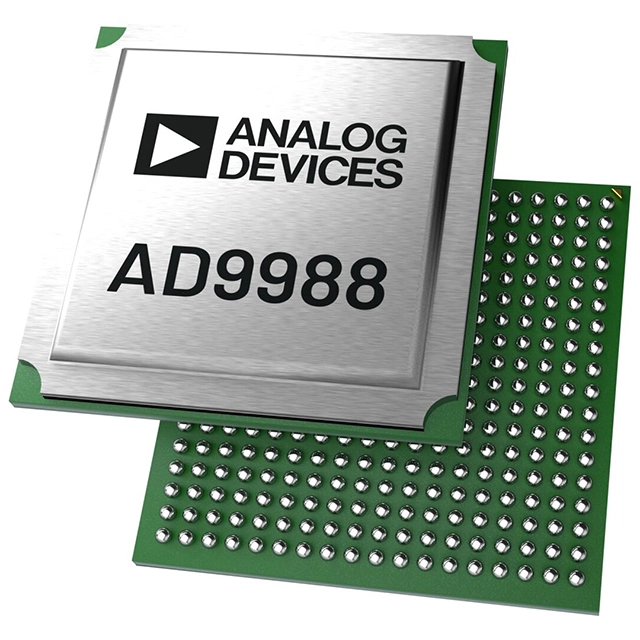

AD9988BBPZ-4D4AC

Manufacturer::

Analog Devices Inc.

Factory Pack Quantity:

Package/Case:

BGA-ED-324

Inquiry

Write a Review

Product Specifications

TYPE	DESCRIPTION
Category	RF and Wireless RF Transceiver ICs
Mfr	Analog Devices Inc.
Series	AD9988
Package
Product Status	Active
DigiKey Programmable	Not Verified
Type	TxRx Only
RF Family/Standard	Cellular
Protocol	LTE, WCDMA
Modulation	-
Frequency	7.5GHz
Data Rate (Max)	24.75Gbps
Power - Output	-
Sensitivity	-
Memory Size	-
Serial Interfaces	-
GPIO	11
Voltage - Supply	0.95V ~ 1.05V, 1.9V ~ 2.1V
Current - Receiving	-
Current - Transmitting	-
Operating Temperature	-40°C ~ 120°C (TJ)
Mounting Type	Surface Mount
Package / Case	324-FBGA Exposed Pad
Supplier Device Package	324-BGA-ED (15x15)
Base Product Number	AD9988

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
