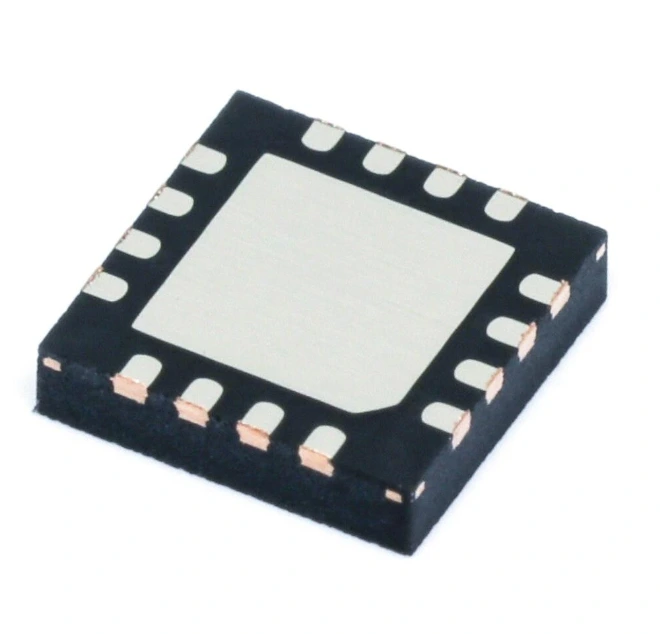

ADL5562ACPZ-R7

Part number:

ADL5562ACPZ-R7

Manufacturer::

Analog Devices Inc.

Factory Pack Quantity:

1500

Package/Case:

LFCSP-16

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	Analog Devices Inc.
Product Category:	RF Amplifier
RoHS:	Details
Operating Frequency:	3.3 GHz
Operating Supply Voltage:	3 V to 3.6 V
Operating Supply Current:	80 mA
Gain:	15.5 dB
Type:	Gain Block Amplifiers
Mounting Style:	SMD/SMT
Package / Case:	LFCSP-16
Technology:	Si
OIP3 - Third Order Intercept:	25 dBm
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Series:	ADL5562
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Analog Devices
Moisture Sensitive:	Yes
Number of Channels:	1 Channel
Product Type:	RF Amplifier
	1500
Subcategory:	Wireless & RF Integrated Circuits
Supply Voltage - Max:	3.6 V
Supply Voltage - Min:	3 V
Test Frequency:	1 GHz
Unit Weight:	0.613767 oz
