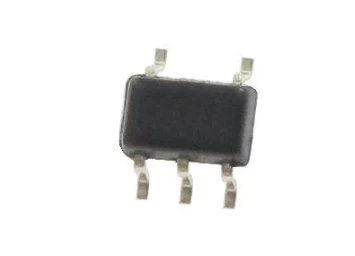

ADR02BKSZ-REEL7
Part number:
ADR02BKSZ-REEL7
Manufacturer::
Analog Devices Inc.
Factory Pack Quantity:
3000
Package/Case:
SC-70-5
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Write a Review
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Analog Devices Inc. | |
| Product Category: | Voltage References |
| RoHS: | Details |
| SMD/SMT | |
| SC-70-5 | |
| Series Precision References | |
| 5 V | |
| 0.06 % | |
| 3 PPM / C | |
| 36 V | |
| 10 mA | |
| - 40 C | |
| + 125 C | |
| ADR02 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Accuracy: | 70 ppm/mA |
| Brand: | Analog Devices |
| Description/Function: | Ultra-compact, precision + 5.0 V reference |
| Height: | 0.9 mm |
| Input Voltage: | 7 V to 40 V |
| Length: | 2 mm |
| Load Regulation: | 70 ppm/mA |
| Operating Supply Current: | 1 mA |
| Output Current: | 10 mA |
| Product: | Voltage References |
| Product Type: | Voltage References |
| 3000 | |
| Subcategory: | PMIC - Power Management ICs |
| Topology: | Series References |
| Width: | 1.25 mm |
| Unit Weight: | 0.000705 oz |
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
