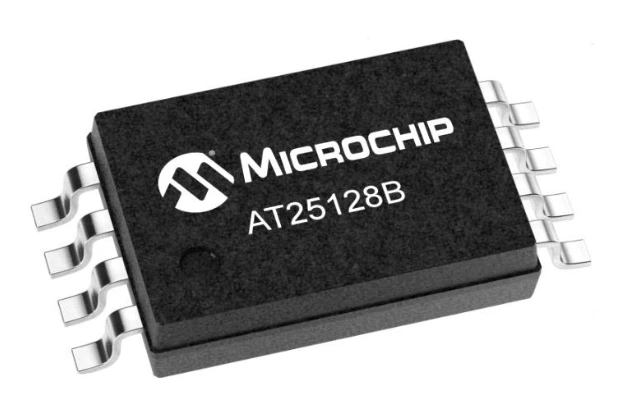

AT25128B-XHL-T

Part number:

AT25128B-XHL-T

Manufacturer::

Microchip

Factory Pack Quantity:

5000

Package/Case:

TSSOP-8

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	Microchip
Product Category:	EEPROM
RoHS:	Details
Mounting Style:	SMD/SMT
Package / Case:	TSSOP-8
Interface Type:	3-Wire, SPI
Memory Size:	128 kbit
Organization:	16 k x 8
Supply Voltage - Min:	1.8 V
Supply Voltage - Max:	5.5 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Maximum Clock Frequency:	20 MHz
Data Retention:	100 Year
Supply Current - Max:	10 mA
Series:	AT25128B
Packaging:	Reel
Active Read Current - Max:	6 mA
Brand:	Microchip Technology
Operating Supply Voltage:	1.8 V to 5.5 V
Product Type:	EEPROM
	5000
Subcategory:	Memory & Data Storage
Unit Weight:	0.005573 oz

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
