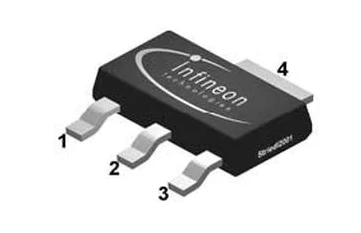

BSP75N
Part number:
BSP75N
Manufacturer::
Infineon
Factory Pack Quantity:
4000
Package/Case:
SOT-223-4
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Write a Review
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Infineon | |
| Product Category: | Power Switch ICs - Power Distribution |
| RoHS: | Details |
| Low Side | |
| 1 Output | |
| 700 mA | |
| 1.5 A | |
| 550 mOhms | |
| 20 us | |
| 20 us | |
| - | |
| - 40 C | |
| + 150 C | |
| SMD/SMT | |
| SOT-223-4 | |
| HITFET | |
| AEC-Q100 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Infineon Technologies |
| Moisture Sensitive: | Yes |
| Pd - Power Dissipation: | 1.8 W |
| Product: | Power Switches |
| Product Type: | Power Switch ICs - Power Distribution |
| 4000 | |
| Subcategory: | Switch ICs |
| Supply Voltage - Max: | 10 V |
| Supply Voltage - Min: | - 200 mV |
| Tradename: | HITFET |
| Part # Aliases: | BSP75NXT SP000305171 BSP75NHUMA1 |
| Unit Weight: | 0.003951 oz |
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
