BTS7020-2EPA

Part number:

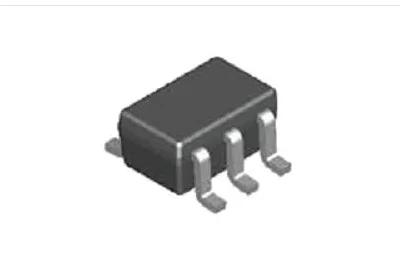

NLAST4599DFT2

Manufacturer::

onsemi

Factory Pack Quantity:

6000

Package/Case:

SOT-363-6

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	onsemi
Product Category:	Analog Switch ICs
RoHS:	N
Mounting Style:	SMD/SMT
Package / Case:	SOT-363-6
Number of Channels:	1 Channel
Configuration:	1 x SPDT
On Resistance - Max:	25 Ohms
Supply Voltage - Min:	2 V
Supply Voltage - Max:	5.5 V
On Time - Max:	14 ns
Off Time - Max:	8 ns
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	onsemi
Height:	0.9 mm
Length:	2 mm
Pd - Power Dissipation:	200 mW
Product Type:	Analog Switch ICs
	6000
Subcategory:	Switch ICs
Supply Current - Max:	1 uA
Supply Type:	Single Supply
Width:	1.25 mm
Unit Weight:	0.000265 oz

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
