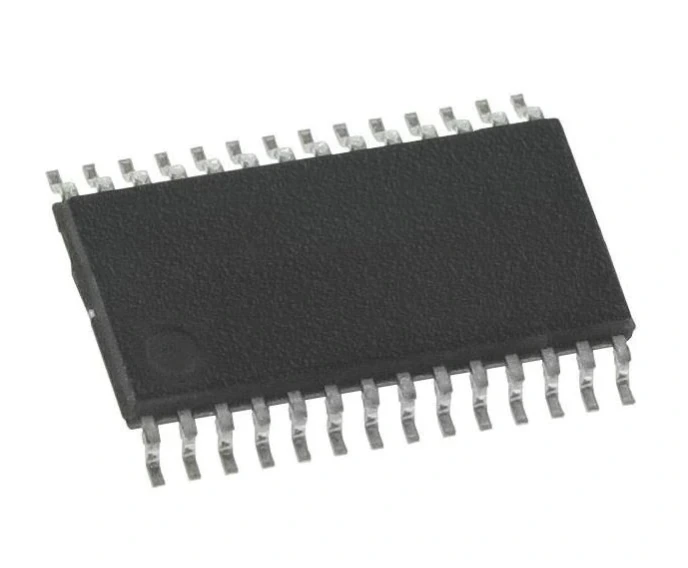

CS8406-CZZR

Manufacturer::

Cirrus Logic

Factory Pack Quantity:

4000

Package/Case:

TSSOP-28

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	Cirrus Logic
Product Category:	Audio Transmitters, Receivers, Transceivers
RoHS:	Details
Series:	CS8406
Mounting Style:	SMD/SMT
Package / Case:	TSSOP-28
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Cirrus Logic
Product Type:	Audio Transmitters, Receivers, Transceivers
	4000
Subcategory:	Audio ICs
Unit Weight:	0.014215 oz

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
