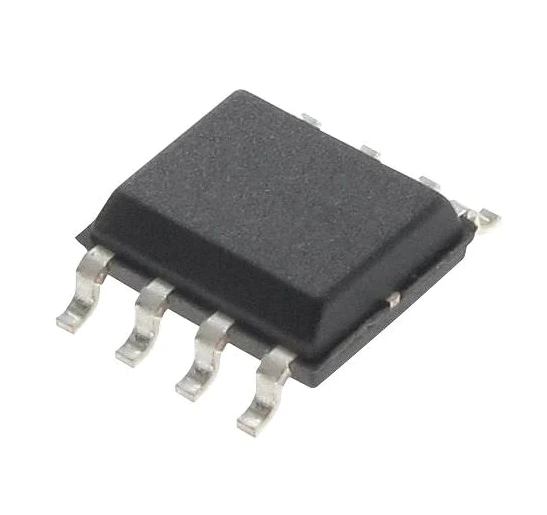

DS1682S+T&R

Part number:

DS1682S+T&R

Manufacturer::

Analog Devices Inc.

Factory Pack Quantity:

2500

Package/Case:

SOIC-8

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	Analog Devices Inc.
Product Category:	Real Time Clock
RoHS:	Details
RTC Bus Interface:	Serial, 2-Wire
Date Format:	Binary
Time Format:	Binary
RTC Memory Size:	10 B
Package / Case:	SOIC-8
Battery Backup Switching:	No Backup Switching
Supply Voltage - Min:	2.5 V
Supply Voltage - Max:	5.5 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Series:	DS1682
Mounting Style:	SMD/SMT
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Analog Devices / Maxim Integrated
Product Type:	Real Time Clocks
	2500
Subcategory:	Clock & Timer ICs
Part # Aliases:	DS1682 90-1682S+TRL
Unit Weight:	0.017870 oz
