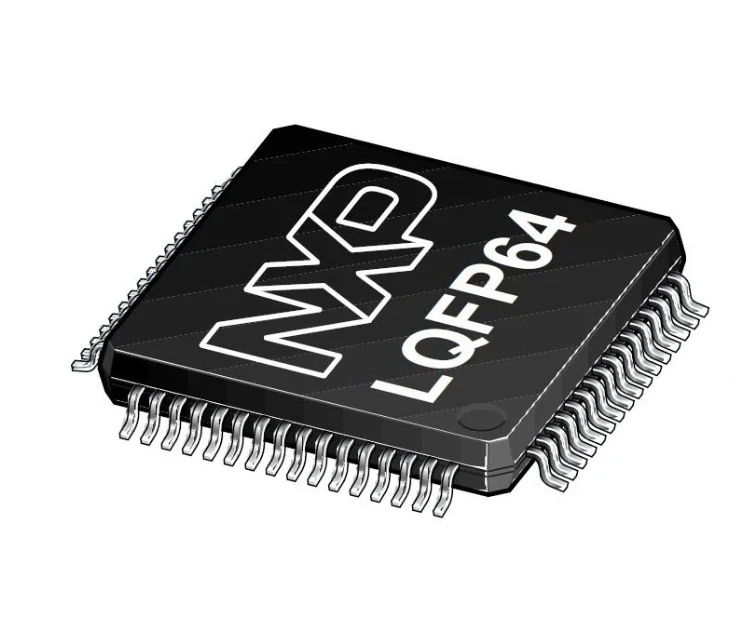

FS32K144HAT0MLHT

Part number:

FS32K144HAT0MLHT

Manufacturer::

NXP

Factory Pack Quantity:

800

Package/Case:

LQFP-64

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	NXP
Product Category:	ARM Microcontrollers - MCU
RoHS:	Details
Series:	S32K1
Mounting Style:	SMD/SMT
Package / Case:	LQFP-64
Core:	ARM Cortex M4F
Program Memory Size:	512 kB
Data Bus Width:	32 bit
ADC Resolution:	2 x 12 bit
Maximum Clock Frequency:	80 MHz
Number of I/Os:	58 I/O
Data RAM Size:	64 kB
Supply Voltage - Min:	2.7 V
Supply Voltage - Max:	5.5 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Qualification:	AEC-Q100
Packaging:	Tray
Analog Supply Voltage:	2.7 V to 3 V, 3 V to 5.5 V
Brand:	NXP Semiconductors
DAC Resolution:	8 bit
Data RAM Type:	SRAM
Data ROM Size:	4 kB
Data ROM Type:	EEPROM
I/O Voltage:	3.3 V, 5 V
Interface Type:	I2C, I2S, SPI, UART
Moisture Sensitive:	Yes
Number of ADC Channels:	16 Channel
Number of Timers/Counters:	4 x 32 bit
Operating Supply Voltage:	2.7 V to 5.5 V
Processor Series:	S32K1xx
Product:	MCU+DSP+FPUs
Product Type:	ARM Microcontrollers - MCU
Program Memory Type:	Flash
	800
Subcategory:	Microcontrollers - MCU
Watchdog Timers:	Watchdog Timer
Part # Aliases:	935347676557
Unit Weight:	0.012826 oz

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
