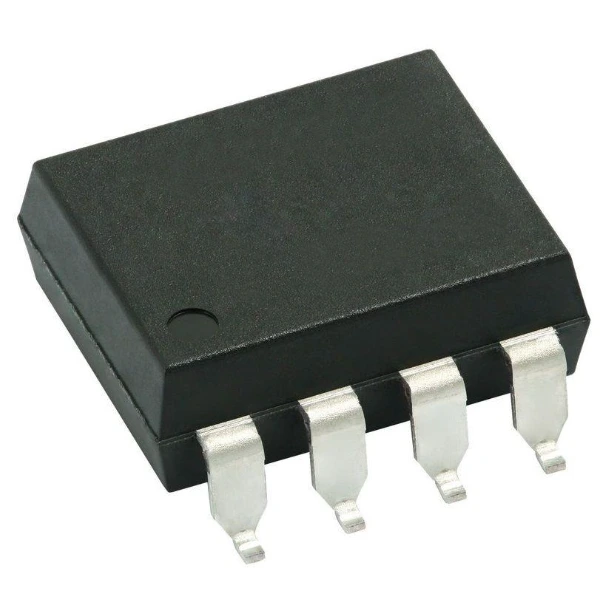

HCNR201-500E
Part number:
HCNR201-500E
Manufacturer::
Broadcom Limited
Factory Pack Quantity:
750
Package/Case:
DIP-8 Gull Wing
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Write a Review
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Broadcom Limited | |
| Product Category: | High Linearity Optocouplers |
| RoHS: | Details |
| SMD/SMT | |
| DIP-8 Gull Wing | |
| Photodiode | |
| 1 Channel | |
| 5000 Vrms | |
| 20 mA | |
| 1.6 V | |
| 2.5 V | |
| 60 mW | |
| - 55 C | |
| + 100 C | |
| HCNR201 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Broadcom / Avago |
| Current Transfer Ratio: | 0.36 % to 0.72 % |
| Height: | 4 mm |
| Length: | 11.15 mm |
| Product Type: | High Linearity Optocouplers |
| 750 | |
| Subcategory: | Optocouplers |
| Width: | 9 mm |
| Unit Weight: | 0.126868 oz |
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
