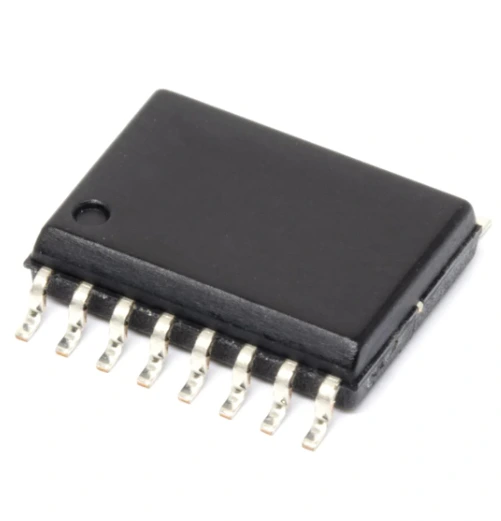

IR2113STRPBF
Part number:
IR2113STRPBF
Manufacturer::
Infineon
Factory Pack Quantity:
1000
Package/Case:
SOIC-16
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Infineon | |
| Product Category: | Gate Drivers |
| RoHS: | Details |
| IGBT, MOSFET Gate Drivers | |
| High-Side, Low-Side | |
| SMD/SMT | |
| SOIC-16 | |
| 2 Driver | |
| 2 Output | |
| 2.5 A | |
| 10 V | |
| 25 V | |
| 35 ns | |
| 25 ns | |
| - 40 C | |
| + 125 C | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Infineon Technologies |
| Features: | Independent |
| Height: | 2.35 mm |
| Length: | 10.5 mm |
| Logic Type: | CMOS, TTL |
| Maximum Turn-Off Delay Time: | 20 ns |
| Maximum Turn-On Delay Time: | 20 ns |
| Moisture Sensitive: | Yes |
| Operating Supply Current: | 340 uA |
| Output Voltage: | 10 V to 20 V |
| Pd - Power Dissipation: | 1.25 W |
| Product Type: | Gate Drivers |
| Propagation Delay - Max: | 150 ns |
| 1000 | |
| Subcategory: | PMIC - Power Management ICs |
| Technology: | Si |
| Width: | 7.6 mm |
| Unit Weight: | 0.023492 oz |
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
