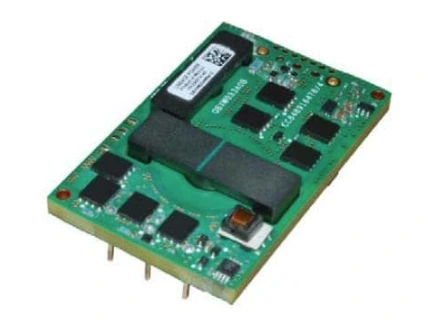

KBVW006A0B641Z

Part number:

KBVW006A0B641Z

Manufacturer::

OmniOn Power

Factory Pack Quantity:

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	OmniOn Power
Product Category:	Isolated DC/DC Converters - Through Hole
RoHS:	Details
Mounting Style:	Through Hole
Number of Outputs:	1 Output
Output Power:	72 W
Input Voltage, Min:	36 V
Input Voltage, Max:	75 V
Output Voltage-Channel 1:	11.67 V to 12.25 V
Output Current-Channel 1:	6 A
Isolation Voltage:	2.25 kV
Package / Case:	1/16 Brick
Length:	33 mm
Width:	22.86 mm
Height:	9.3 mm
Industry:	Industrial
Product:	Isolated
Series:	Barracuda
Brand:	OmniOn Power
Input Voltage:	36 V to 75 V
Moisture Sensitive:	Yes
Product Type:	Isolated DC-DC Converters
	75
Subcategory:	DC-DC Converter
Part # Aliases:	150024448
Unit Weight:	0.458562 oz

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
