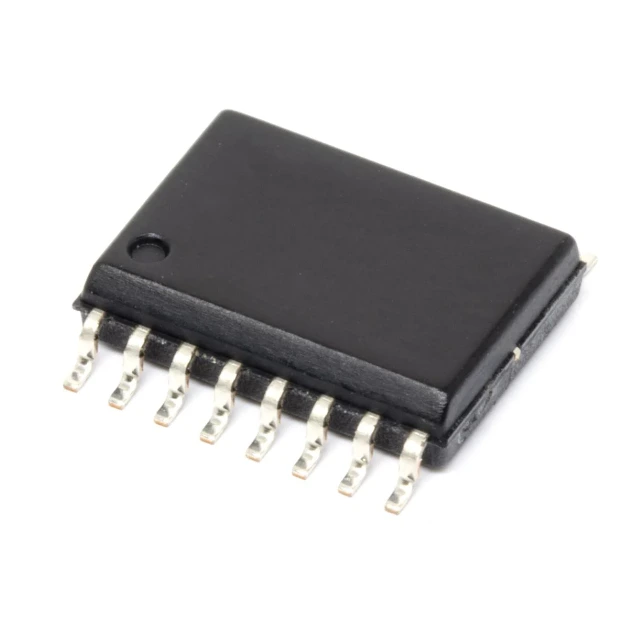

L6668

Part number:

L6668

Manufacturer::

STMicroelectronics

Factory Pack Quantity:

1000

Package/Case:

SO-16 N

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	STMicroelectronics
Product Category:	Switching Controllers
RoHS:	Details
Topology:	Flyback
Number of Outputs:	1 Output
Switching Frequency:	105 kHz
Duty Cycle - Max:	75 %
Output Current:	800 mA
Minimum Operating Temperature:	- 25 C
Maximum Operating Temperature:	+ 150 C
Mounting Style:	SMD/SMT
Package / Case:	SO-16 N
Packaging:	Tube
Brand:	STMicroelectronics
Fall Time:	30 ns
Moisture Sensitive:	Yes
Product Type:	Switching Controllers
Rise Time:	55 ns
Series:	L6668
	1000
Subcategory:	PMIC - Power Management ICs
Type:	Current Mode PWM Controllers
Unit Weight:	0.024740 oz
