A leading professional service provider focusing on the global semiconductor distribution industry.

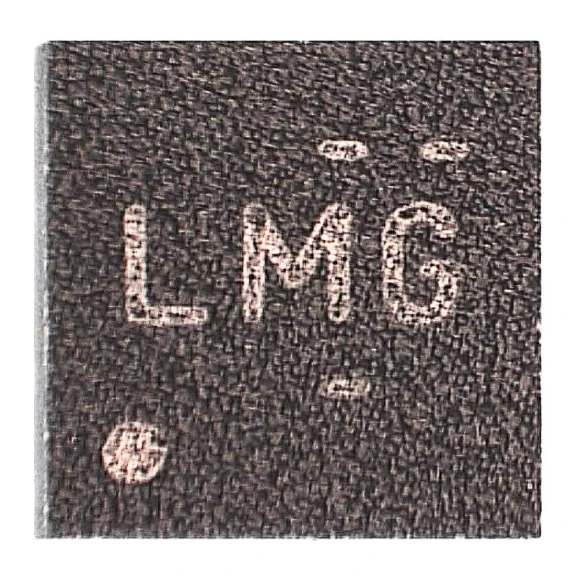

LMG1025QDEERQ1

Part number:

LMG1025QDEERQ1

Manufacturer::

Texas Instruments

Factory Pack Quantity:

3000

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	Texas Instruments
Product Category:	Gate Drivers
RoHS:	Details
Product:	MOSFET Gate Drivers
Type:	Low-Side
Mounting Style:	SMD/SMT
Number of Drivers:	1 Driver
Number of Outputs:	1 Output
Output Current:	7 A
Supply Voltage - Min:	4.75 V
Supply Voltage - Max:	5.25 V
Rise Time:	650 ps
Fall Time:	850 ps
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Texas Instruments
Moisture Sensitive:	Yes
Product Type:	Gate Drivers
	3000
Subcategory:	PMIC - Power Management ICs
Tradename:	GaN
Unit Weight:	0.000272 oz

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
