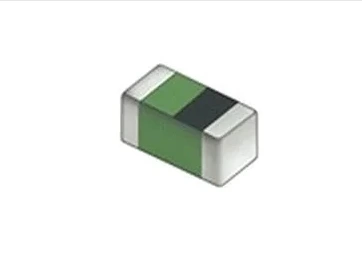

LQG15HS1N8S02

Part number:

LQG15HS1N8S02

Manufacturer::

Murata

Package/Case:

0402 (1005 metric)

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	Murata
Product Category:	RF Inductors - SMD
Termination Style:	SMD/SMT
Package / Case:	0402 (1005 metric)
Maximum DC Resistance:	130 mOhms
Mounting Style:	PCB Mount
Core Material:	Air
Series:	LQG
Application:	RF
Brand:	Murata Electronics
Case Code - in:	0402
Case Code - mm:	1005
Core Type:	Wirewound
Product:	RF Inductors
Product Type:	RF Inductors - Leaded
Subcategory:	Inductors, Chokes & Coils
Termination:	Standard
Unit Weight:	0.000035 oz

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
