LTC3616IUDD#PBF
Part number:
LTC3616IUDD#PBF
Manufacturer::
Analog Devices Inc.
Factory Pack Quantity:
73
Package/Case:

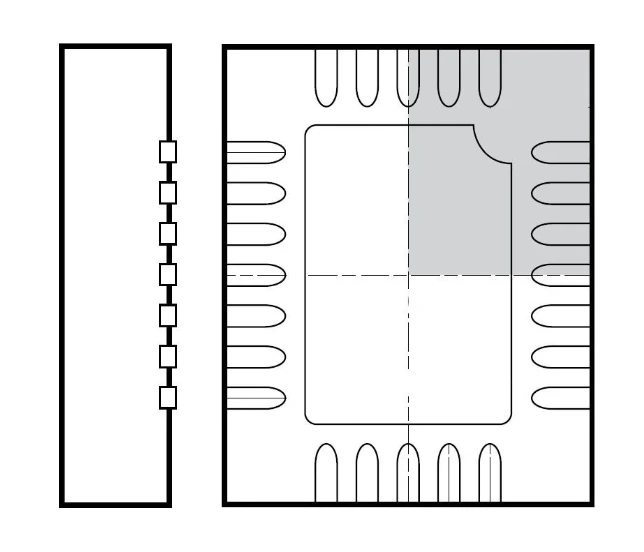

QFN-24
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Write a Review
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Analog Devices Inc. | |
| Product Category: | Switching Voltage Regulators |
| RoHS: | Details |
| 600 mV to 5.5 V | |
| 6 A | |
| 5.5 V | |
| 1 Output | |
| Buck | |
| QFN-24 | |
| SMD/SMT | |
| 4 MHz | |
| 75 uA | |
| - 40 C | |
| + 125 C | |
| LTC3616 | |
| Tube | |
| 2.25 V | |
| Brand: | Analog Devices |
| Development Kit: | DC1461A |
| Input Voltage: | 2.25 V to 5.5 V |
| Load Regulation: | 2.6 % |
| Operating Supply Current: | 75 uA |
| Product Type: | Switching Voltage Regulators |
| Shutdown: | Shutdown |
| 73 | |
| Subcategory: | PMIC - Power Management ICs |
| Type: | Monolithic Synchronous DC/DC Converter |
| Unit Weight: | 0.005692 oz |
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
