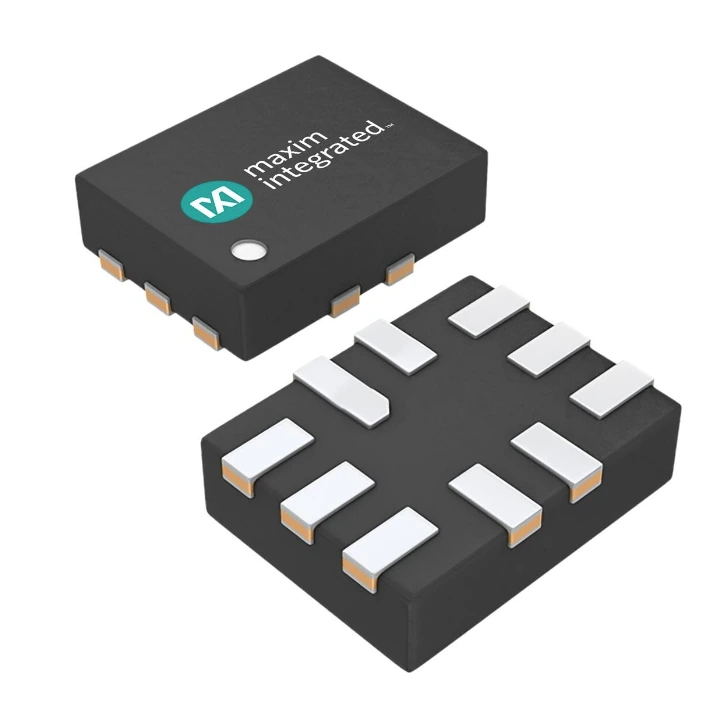

MAX4992EVB+T

Part number:

MAX4992EVB+T

Manufacturer::

Analog Devices Inc.

Factory Pack Quantity:

2500

Package/Case:

ULTRA-TQFN-10

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	Analog Devices Inc.
Product Category:	Analog Switch ICs
RoHS:	Details
Mounting Style:	SMD/SMT
Package / Case:	ULTRA-TQFN-10
Number of Channels:	2 Channel
Configuration:	2 x SPDT
On Resistance - Max:	600 mOhms
Supply Voltage - Min:	1.8 V
Supply Voltage - Max:	5.5 V
Minimum Dual Supply Voltage:	-
Maximum Dual Supply Voltage:	-
On Time - Max:	150 us
Off Time - Max:	2 us
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Series:	MAX4992
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Analog Devices / Maxim Integrated
Product Type:	Analog Switch ICs
	2500
Subcategory:	Switch ICs
Part # Aliases:	MAX4992
Unit Weight:	0.000123 oz

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
