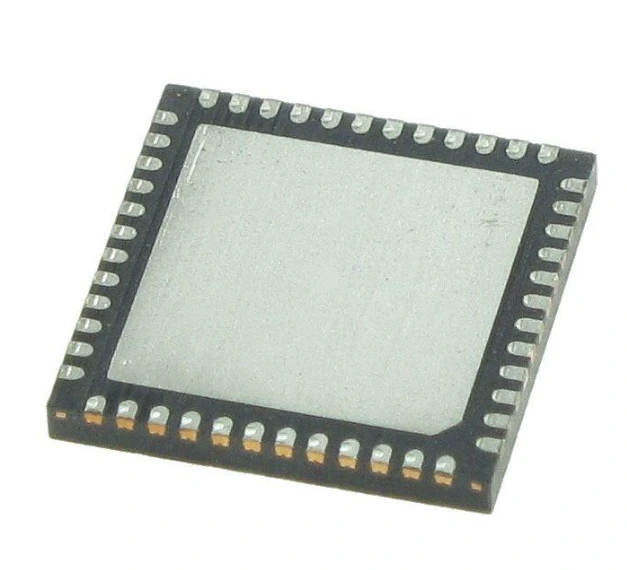

MAX9277GTM/V+

Part number:

MAX9277GTM/V+

Manufacturer::

Analog Devices Inc.

Factory Pack Quantity:

260

Package/Case:

TQFN-48

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	Analog Devices Inc.
Product Category:	Serializers & Deserializers - Serdes
RoHS:	Details
Package / Case:	TQFN-48
Qualification:	AEC-Q100
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Analog Devices / Maxim Integrated
Product Type:	Serializers & Deserializers - Serdes
Series:	MAX9277
	260
Subcategory:	Interface ICs
Part # Aliases:	MAX9277
Unit Weight:	0.004668 oz

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
