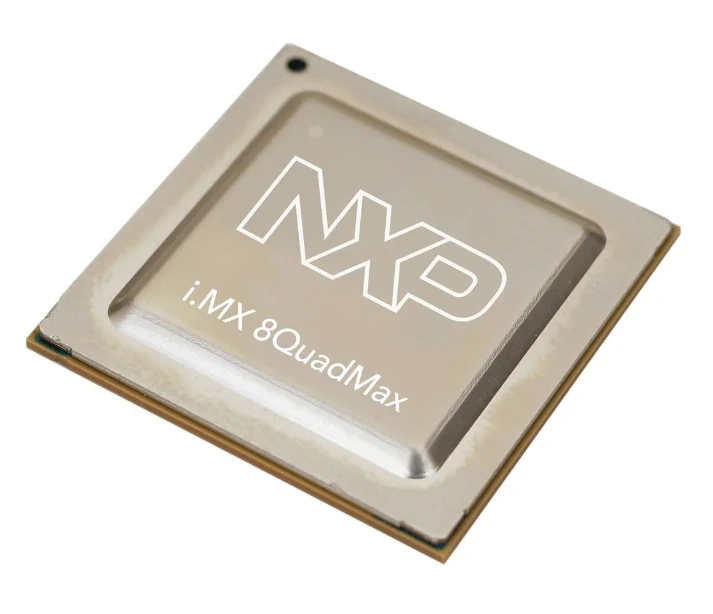

MIMX8QM6AVUFFAB
Part number:
MIMX8QM6AVUFFAB
Manufacturer::
NXP
Factory Pack Quantity:
36
Package/Case:
FCPBGA-1313
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Write a Review
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| NXP | |
| Product Category: | Processors - Application Specialized |
| RoHS: | |
| SMD/SMT | |
| FCPBGA-1313 | |
| i.MX8 | |
| Automotive, Infotainment | |
| ARM Cortex A53, ARM Cortex A72, ARM Cortex M4F | |
| 8 Core | |
| 64 bit | |
| 264 MHz, 1.2 GHz, 1.6 GHz | |
| 32 kB, 32 kB, 48 kB | |
| 32 kB, 32 kB, 48 kB | |
| 1 V, 1.1 V | |
| - 40 C | |
| + 125 C | |
| Tray | |
| Brand: | NXP Semiconductors |
| Data RAM Size: | 256 kB, 448 kB |
| Instruction Type: | Floating Point |
| Interface Type: | CAN, ESAI, Ethernet, I2C, SAI, SPI, UART, USB |
| L2 Cache Instruction / Data Memory: | 2 x 1 MB |
| Memory Type: | LPDDR4 |
| Moisture Sensitive: | Yes |
| Number of Timers/Counters: | 6 Timer |
| Processor Series: | i.MX 8QuadMax |
| Product Type: | Processors - Application Specialized |
| 36 | |
| Subcategory: | Processors - Application Specialized |
| Tradename: | i.MX |
| Watchdog Timers: | Watchdog Timer |
| Part # Aliases: | 935385047557 |
| Unit Weight: | 0 oz |
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
