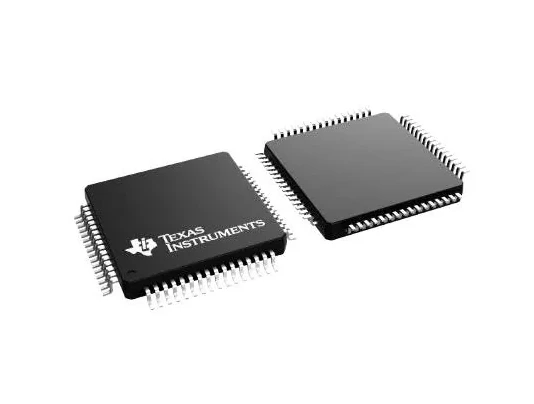

MSPM0G3507SPMR

Part number:

MSPM0G3507SPMR

Manufacturer::

Texas Instruments

Factory Pack Quantity:

1000

Package/Case:

LQFP-64

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	Texas Instruments
Product Category:	ARM Microcontrollers - MCU
RoHS:	Details
Mounting Style:	SMD/SMT
Package / Case:	LQFP-64
Core:	ARM Cortex M0+
Program Memory Size:	128 kB
Data Bus Width:	32 bit
ADC Resolution:	2 x 12 bit
Maximum Clock Frequency:	80 MHz
Number of I/Os:	60 I/O
Data RAM Size:	32 kB
Supply Voltage - Min:	1.62 V
Supply Voltage - Max:	3.6 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Analog Supply Voltage:	3.6 V
Brand:	Texas Instruments
DAC Resolution:	12 bit
Data RAM Type:	SRAM
Interface Type:	CAN, I2C, SPI, UART
Moisture Sensitive:	Yes
Number of ADC Channels:	17 Channel
Product:	Mixed-Signal Microcontrollers
Product Type:	ARM Microcontrollers - MCU
Program Memory Type:	Flash
	1000
Subcategory:	Microcontrollers - MCU
Watchdog Timers:	Watchdog Timer, Windowed

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
