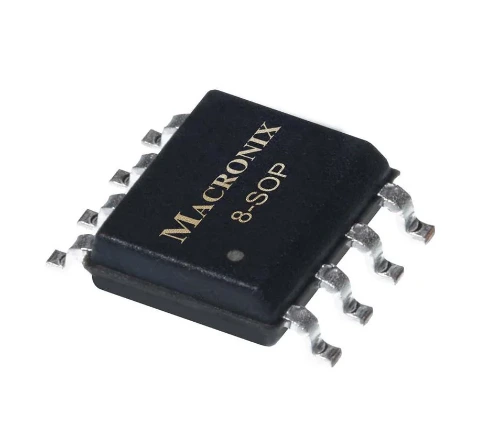

MX25L3206EM2I-12G

Part number:

MX25L3206EM2I-12G

Manufacturer::

Macronix

Package/Case:

SOP-8

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	Macronix
Product Category:	NOR Flash
Mounting Style:	SMD/SMT
Package / Case:	SOP-8
Memory Size:	32 Mbit
Supply Voltage - Min:	2.7 V
Supply Voltage - Max:	3.6 V
Active Read Current - Max:	25 mA
Interface Type:	SPI
Maximum Clock Frequency:	86 MHz
Organization:	4 M x 8
Data Bus Width:	8 bit
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Packaging:	Tube
Brand:	Macronix
Product Type:	NOR Flash
Subcategory:	Memory & Data Storage

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
