With the support of a well-developed manufacturing facility, arm microcontroller is manufactured according to the requirement of standardization production. By cause of the design of arm microcontroller, enjoys a good reputation. The quality of arm microcontroller is always the thing Shenzhen Shenming Electronic technology Co., Ltd has been concerned about.

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	NXP
Product Category:	ARM Microcontrollers - MCU
RoHS:	Details
Series:	S32K1
Mounting Style:	SMD/SMT

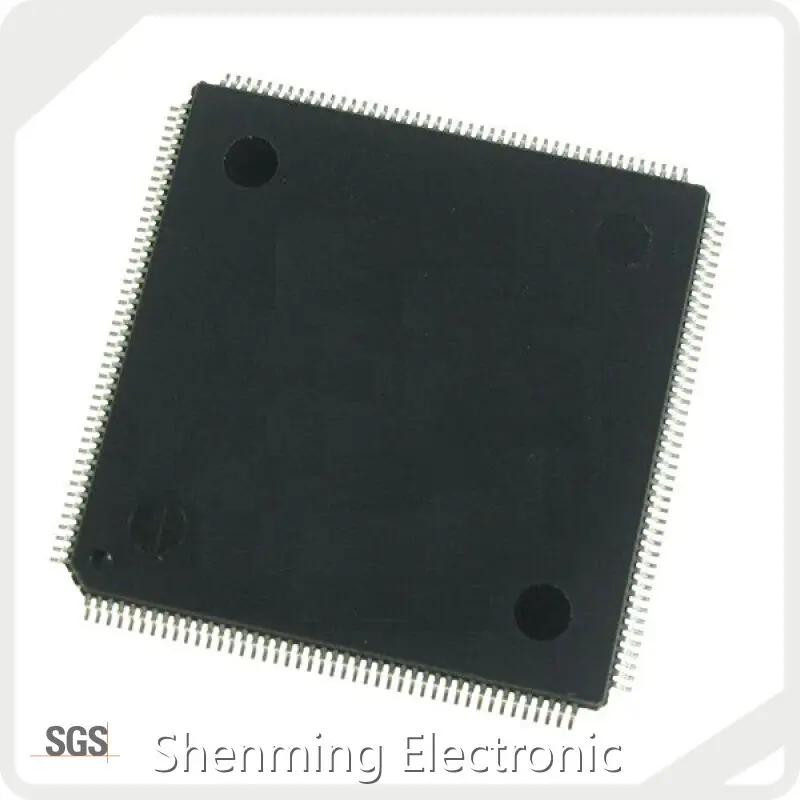

Package / Case:	LQFP-176
Core:	ARM Cortex M4F
Program Memory Size:	2 MB
Data Bus Width:	32 bit
ADC Resolution:	2 x 12 bit
Maximum Clock Frequency:	80 MHz
Number of I/Os:	156 I/O
Data RAM Size:	256 kB
Supply Voltage - Min:	2.7 V
Supply Voltage - Max:	5.5 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Qualification:	AEC-Q100
Packaging:	Tray
Analog Supply Voltage:	2.7 V to 3 V, 3 V to 5.5 V
Brand:	NXP Semiconductors
DAC Resolution:	8 bit
Data RAM Type:	SRAM
Data ROM Size:	4 kB
Data ROM Type:	EEPROM
I/O Voltage:	3.3 V, 5 V
Interface Type:	I2C, I2S, LIN, PWM, SPI, UART
Moisture Sensitive:	Yes
Number of ADC Channels:	32 Channel
Product:	MCU+DSP+FPUs
Product Type:	ARM Microcontrollers - MCU
Program Memory Type:	Flash
Factory Pack Quantity:	200
Subcategory:	Microcontrollers - MCU
Watchdog Timers:	Watchdog Timer
Part # Aliases:	935370338557

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one. For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).

Company Advantage

• Founded in Shenming Electronic has been developing for years. Now we are a leader in the industry.
• A number of highly skilled and experienced engineers who have accumulated rich industry experience lay a solid foundation for our development.
• Shenming Electronic provides professional, diversified and international services for customers.
• Shenming Electronic's location enjoys advantageous geographic condition with open and unimpeded traffic access. This creates convenience for us to deliver various in time.
• Our products are sold in many cities and regions at home and abroad. While creating profits for our company, they have also expanded the market in many regions, and won a lot of praise from consumers.
Contact Shenming Electronic for orders today, and there is a chance to get Shenming Electronic's free samples of the latest kind of jewelry!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
