arm microcontroller is manufactured adhering to international industry standards. To meet the needs of our rapid social development, arm microcontroller is considered to be the unique characteristics of our products. This product is widely used in various applications.

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	Microchip
Product Category:	ARM Microcontrollers - MCU
RoHS:	Details
Series:	SAM V70
Mounting Style:	SMD/SMT

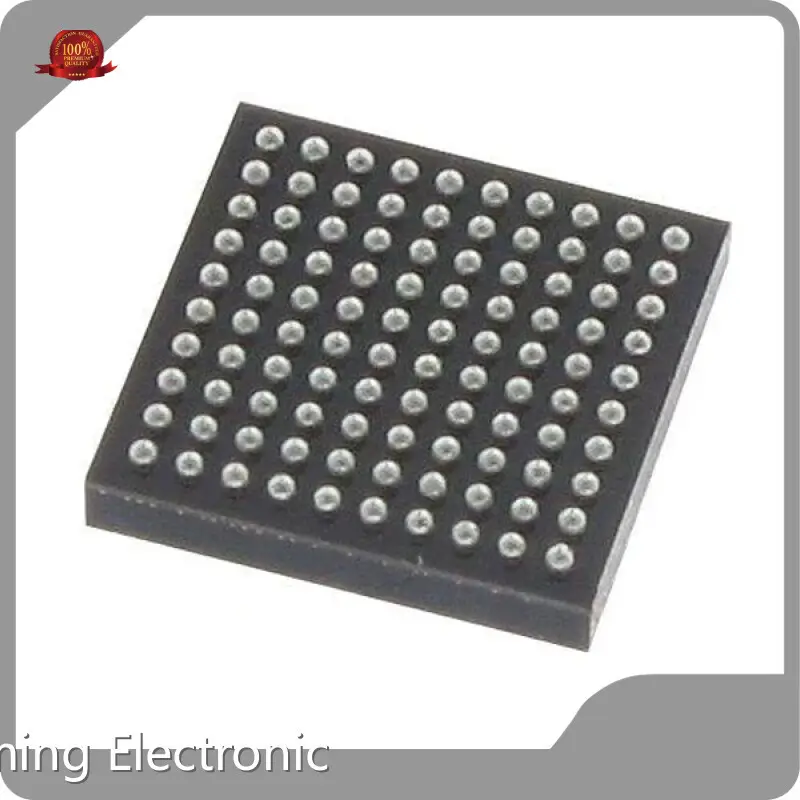

Package / Case:	TFBGA-100
Core:	ARM Cortex M7
Program Memory Size:	1 MB
Data Bus Width:	32 bit
ADC Resolution:	12 bit
Maximum Clock Frequency:	300 MHz
Number of I/Os:	75 I/O
Data RAM Size:	384 kB
Supply Voltage - Min:	1.2 V
Supply Voltage - Max:	1.32 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Qualification:	AEC-Q100
Packaging:	Reel
Analog Supply Voltage:	3.3 V
Brand:	Microchip Technology
DAC Resolution:	12 bit
Data RAM Type:	SRAM
Data ROM Size:	16 kB
Data ROM Type:	ROM
I/O Voltage:	3.3 V
Interface Type:	I2C, SDIO, SPI, UART, USART, USB
Number of ADC Channels:	10 Channel
Processor Series:	SAM V70
Product:	MCU+DSP+FPUs
Product Type:	ARM Microcontrollers - MCU
Program Memory Type:	Flash
Factory Pack Quantity:	2000
Subcategory:	Microcontrollers - MCU
Watchdog Timers:	Watchdog Timer

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one. For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).

Company Advantage

• Shenming Electronic has professional R&D and production teams to guarantee for the product quality.
• Our company has a unique geographical advantage, surrounded by complete supporting facilities and convenient transportation.
• Shenming Electronic's products are favored by domestic and foreign customers.
• Customers' needs are the foundation for Shenming Electronic to achieve long-term development. In order to better serve customers and further meet their needs, we run a comprehensive after-sales service system to solve their problems. We sincerely and patiently provide services including information consultation, technical training, and product maintenance and so on.
• Shenming Electronic was founded in Having explored and developed for years, we are a leading company in the industry with large business scale and strong business strength.
Shenming Electronic supplies in all sizes and styles in the long term. Feel free to contact us and order if you have any interest!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
