nxp chip manufacturer is made by using good quality materials under the supervision of the professionals. The product prevails over its competitors with stable performance and long service life. The development of Shenzhen Shenming Electronic technology Co., Ltd benefits the people in the surrounding communities.

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	NXP
Product Category:	16-bit Microcontrollers - MCU
Core:	S12Z
Program Memory Size:	128 kB
Data RAM Size:	8 kB

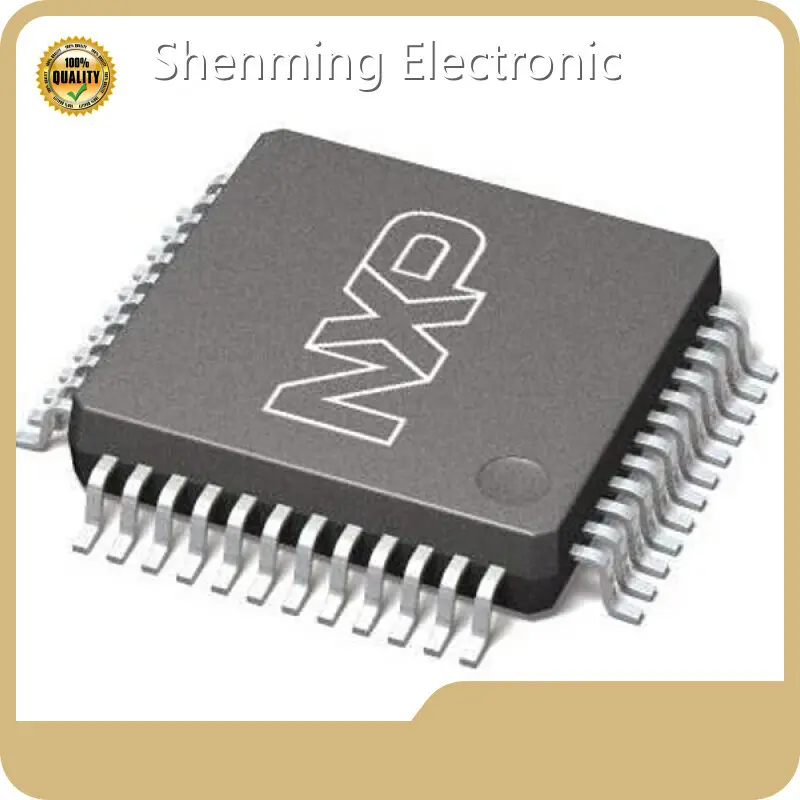

Package / Case:	LQFP-48
Maximum Clock Frequency:	20 MHz
ADC Resolution:	10 bit
Number of I/Os:	28 I/O
Supply Voltage - Min:	1.8 V
Supply Voltage - Max:	1.8 V
Mounting Style:	SMD/SMT
Data Bus Width:	16 bit
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Series:	S12ZVC
Qualification:	AEC-Q100
Packaging:	Tray
Brand:	NXP Semiconductors
Data RAM Type:	RAM
Data ROM Size:	2 kB
Data ROM Type:	EEPROM
Interface Type:	CAN, I2C, SCI, SPI
Number of ADC Channels:	10 Channel
Number of Timers/Counters:	8 Timer
Product:	MCUs
Product Type:	16-bit Microcontrollers - MCU
Program Memory Type:	Flash
Factory Pack Quantity:	250
Subcategory:	Microcontrollers - MCU
Tradename:	MagniV
Watchdog Timers:	Watchdog Timer
Part # Aliases:	935312538557
Unit Weight:	0.006288 oz

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one. For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
