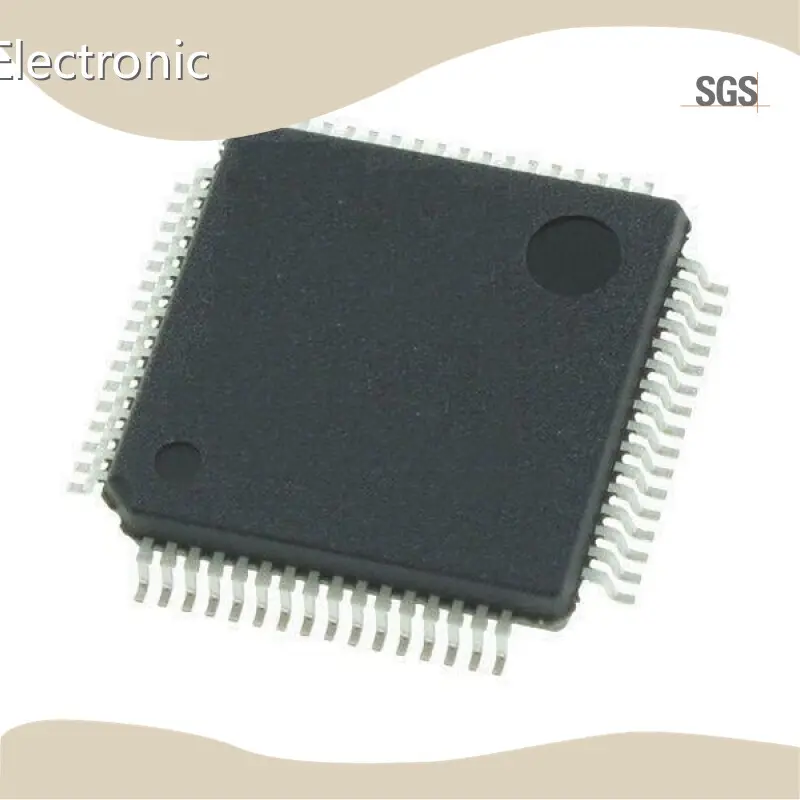

Nxp Nfc Chip ARM Microcontrollers - MCU NXP Brand SMD/SMT

Manufacturer:

NXP

Product Category:

ARM Microcontrollers - MCU

Series:

S32K14x

Mounting Style:

SMD/SMT

Package/Case:

LQFP-64

Inquiry

Product details of the nxp nfc chip

Product Information

nxp nfc chip is made by new environmentally-friendly material. The product is of the quality that meets the most demanding needs of customers. What has been always attracting customers in is its good quality nxp nfc chip and professional service.

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	NXP
Product Category:	ARM Microcontrollers - MCU
RoHS:	Details
Series:	S32K1
Mounting Style:	SMD/SMT
Package / Case:	LQFP-64
Core:	ARM Cortex M4F
Program Memory Size:	256 kB
Data Bus Width:	32 bit
ADC Resolution:	2 x 12 bit
Maximum Clock Frequency:	80 MHz
Number of I/Os:	58 I/O
Data RAM Size:	32 kB
Supply Voltage - Min:	2.7 V
Supply Voltage - Max:	5.5 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Qualification:	AEC-Q100
Packaging:	Tray
Analog Supply Voltage:	2.7 V to 3 V, 3 V to 5.5 V
Brand:	NXP Semiconductors
DAC Resolution:	8 bit
Data RAM Type:	SRAM
Data ROM Size:	4 kB
Data ROM Type:	EEPROM
I/O Voltage:	3.3 V, 5 V
Interface Type:	I2C, I2S, LIN, PWM, SPI, UART
Moisture Sensitive:	Yes
Number of ADC Channels:	16 Channel
Product:	MCU+DSP+FPUs
Product Type:	ARM Microcontrollers - MCU
Program Memory Type:	Flash
Factory Pack Quantity:	800
Subcategory:	Microcontrollers - MCU
Watchdog Timers:	Watchdog Timer
Part # Aliases:	935362249557
Unit Weight:	0.012826 oz

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one. For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
