nxp s32k1 is designed to provide customers with choice and flexibility. The quality of the product is 100% guaranteed by our professional QC staff. Shenming Electronic's nxp s32k1 can be used in a variety of industries. Each nxp s32k1 is produced which exceeds the expectation of customers.

Product Information

Compared with other products in the same category, nxp s32k1 produced by Shenming Electronic has the following advantages.

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	NXP
Product Category:	Digital Signal Processors & Controllers - DSP, DSC
RoHS:	Details
Product:	DSCs
Series:	56F801x
Mounting Style:	SMD/SMT

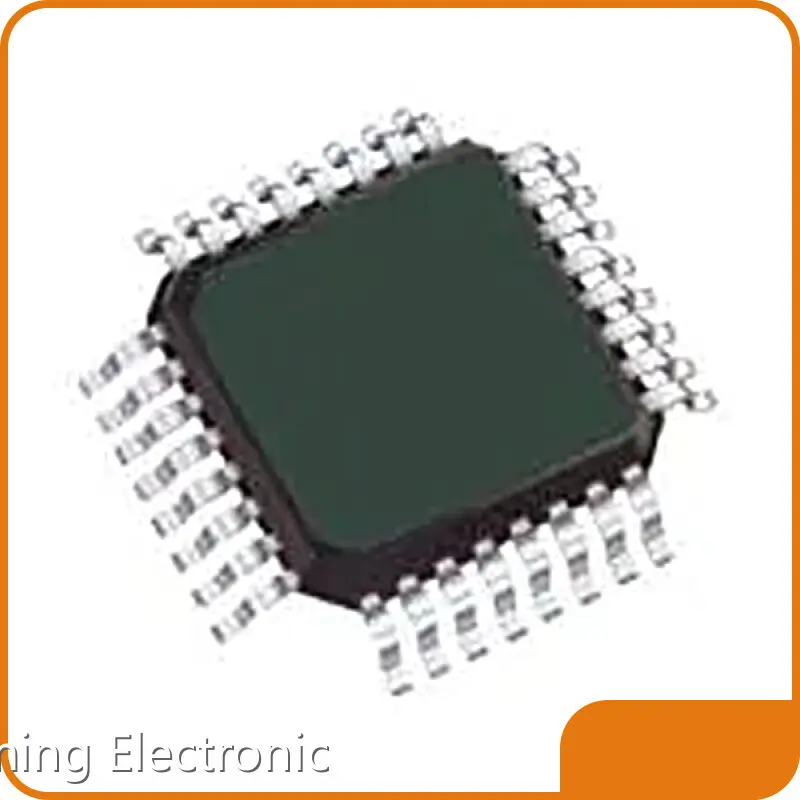

Package / Case:	QFP-32
Core:	56800E
Number of Cores:	1 Core
Maximum Clock Frequency:	32 MHz
Program Memory Size:	16 kB
Data RAM Size:	4 kB
Operating Supply Voltage:	3.3 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Tray
ADC Resolution:	12 bit
Brand:	NXP Semiconductors
Data Bus Width:	16 bit
Data ROM Size:	16 kB
Height:	1.45 mm
Interface Type:	I2C, LIN, SCI, SPI
Length:	7 mm
Moisture Sensitive:	Yes
Number of I/Os:	26 I/O
Number of Timers/Counters:	1 Timer
Product Type:	DSP - Digital Signal Processors & Controllers
Program Memory Type:	Flash
Factory Pack Quantity:	250
Subcategory:	Embedded Processors & Controllers
Supply Voltage - Max:	3.6 V
Supply Voltage - Min:	3 V
Width:	7 mm
Part # Aliases:	935320973557
Unit Weight:	0.006653 oz

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one. For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
