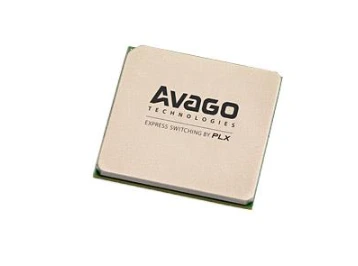

PEX8749-CA80BC G

Part number:

PEX8749-CA80BC G

Factory Pack Quantity:

120

Product Category:

PCI Interface IC

Package/Case:

FCBGA-676

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	Broadcom Limited
Product Category:	PCI Interface IC
RoHS:	Details
Type:	Switch - PCIe
Maximum Clock Frequency:	-
Number of Lanes:	48 Lane
Number of Ports:	18 Port
Supply Voltage - Max:	-
Supply Voltage - Min:	-
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Mounting Style:	SMD/SMT
Package / Case:	FCBGA-676
Packaging:	Tray
Brand:	Broadcom
Moisture Sensitive:	Yes
Product Type:	PCI Interface IC
Series:	PEX 8749
	120
Subcategory:	Interface ICs
Version:	Gen3
Unit Weight:	1.020219 oz
