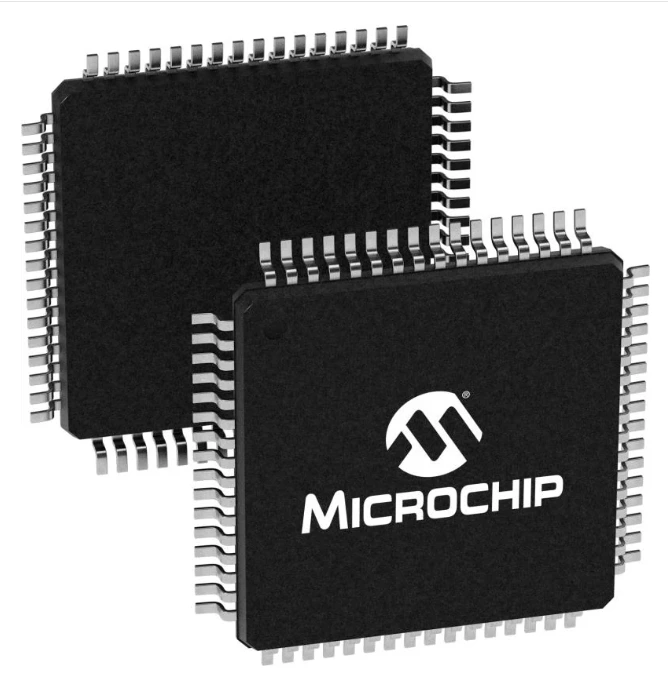

PIC24FJ128GL306-I/PT

Part number:

Manufacturer::

Microchip

Factory Pack Quantity:

160

Package/Case:

TQFP-64

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	Microchip
Product Category:	16-bit Microcontrollers - MCU
RoHS:	Details
Core:	PIC24F
Program Memory Size:	128 kB
Data RAM Size:	8 kB
Package / Case:	TQFP-64
Maximum Clock Frequency:	32 MHz
ADC Resolution:	10 bit, 12 bit
Number of I/Os:	54 I/O
Supply Voltage - Min:	2 V
Supply Voltage - Max:	3.6 V
Mounting Style:	SMD/SMT
Data Bus Width:	16 bit
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Packaging:	Tray
Brand:	Microchip Technology
Data RAM Type:	SRAM
Interface Type:	I2C, JTAG, SPI, UART
Moisture Sensitive:	Yes
Number of ADC Channels:	17 Channel
Processor Series:	PIC24
Product:	MCUs
Product Type:	16-bit Microcontrollers - MCU
Program Memory Type:	Flash
	160
Subcategory:	Microcontrollers - MCU
Watchdog Timers:	Watchdog Timer, Windowed
