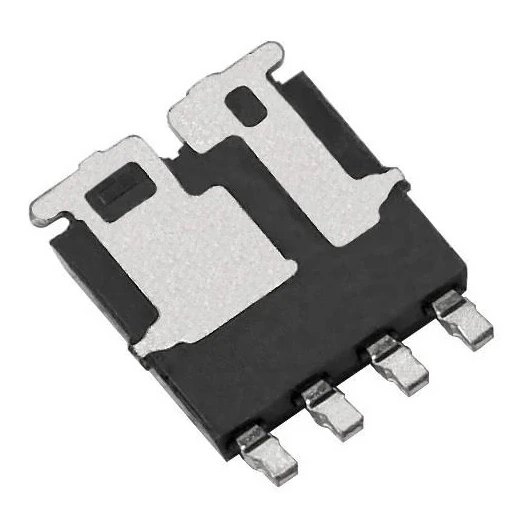

SQJ940EP-T1_GE3

Part number:

SQJ940EP-T1_GE3

Manufacturer::

Vishay / Siliconix

Factory Pack Quantity:

3000

Package/Case:

PowerPAK-SO-8-4

Product Attribute	Attribute Value
Manufacturer:	Vishay
Product Category:	MOSFETs
RoHS:
Technology:	Si
Mounting Style:	SMD/SMT
Package / Case:	PowerPAK-SO-8-4
Transistor Polarity:	N-Channel
Number of Channels:	2 Channel
Vds - Drain-Source Breakdown Voltage:	40 V
Id - Continuous Drain Current:	15 A, 18 A
Rds On - Drain-Source Resistance:	13.3 mOhms, 5.3 mOhms
Vgs - Gate-Source Voltage:	- 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage:	1.5 V
Qg - Gate Charge:	20 nC, 48 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 175 C
Pd - Power Dissipation:	48 W, 43 W
Channel Mode:	Enhancement
Qualification:	AEC-Q101
Tradename:	TrenchFET
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Vishay / Siliconix
Configuration:	Dual
Fall Time:	4.9 ns, 13.5 ns
Forward Transconductance - Min:	64 S, 102 S
Product Type:	MOSFETs
Rise Time:	9.3 ns, 9.5 ns
Series:	SQJ
	3000
Subcategory:	Transistors
Transistor Type:	2 N-Channel
Typical Turn-Off Delay Time:	15.6 ns, 47 ns
Typical Turn-On Delay Time:	4.8 ns, 7.7 ns
Unit Weight:	0.017870 oz
