STM32F437IIH6TR

Part number:

STM32F437IIH6TR

Manufacturer::

STMicroelectronics

Factory Pack Quantity:

1500

Package/Case:

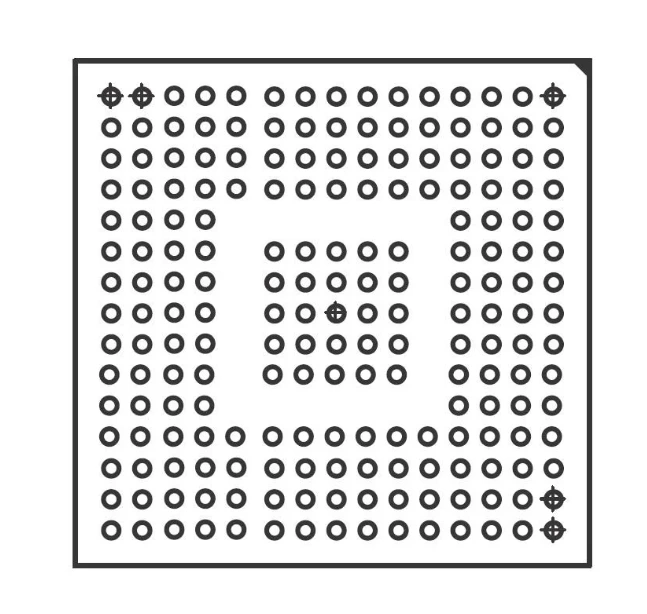

BGA-176

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	STMicroelectronics
Product Category:	ARM Microcontrollers - MCU
RoHS:	Details
Series:	STM32F437II
Package / Case:	BGA-176
Core:	ARM Cortex M4
Data Bus Width:	32 bit
ADC Resolution:	12 bit
Supply Voltage - Min:	1.7 V
Supply Voltage - Max:	3.6 V
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Analog Supply Voltage:	3.3 V
Brand:	STMicroelectronics
DAC Resolution:	12 bit
I/O Voltage:	3.3 V
Moisture Sensitive:	Yes
Processor Series:	ARM Cortex M
Product Type:	ARM Microcontrollers - MCU
	1500
Subcategory:	Microcontrollers - MCU
Tradename:	STM32

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
