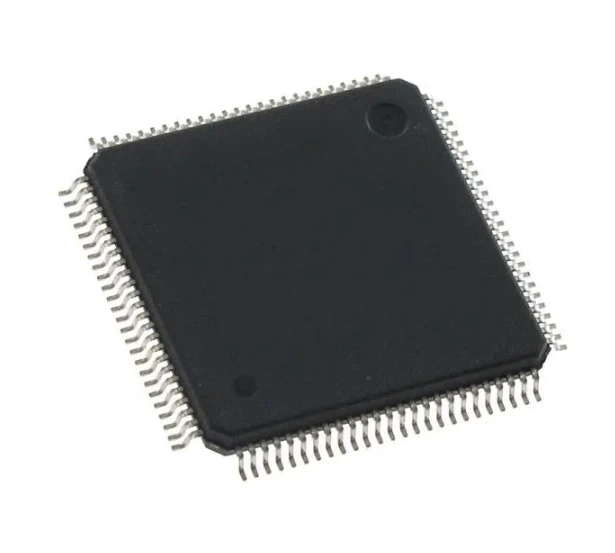

STM32F746VGT6
Part number:
STM32F746VGT6
Manufacturer::
STMicroelectronics
Factory Pack Quantity:
540
Package/Case:
LQFP-100
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| STMicroelectronics | |
| Product Category: | ARM Microcontrollers - MCU |
| RoHS: | Details |
| STM32F746VG | |
| SMD/SMT | |
| LQFP-100 | |
| ARM Cortex M7 | |
| 1 MB | |
| 32 bit | |
| 3 x 12 bit | |
| 216 MHz | |
| 82 I/O | |
| 320 kB | |
| 1.7 V | |
| 3.6 V | |
| - 40 C | |
| + 85 C | |
| Tray | |
| Analog Supply Voltage: | 3.3 V |
| Brand: | STMicroelectronics |
| DAC Resolution: | 12 bit |
| Data RAM Type: | SRAM |
| I/O Voltage: | 3.3 V |
| Interface Type: | CAN, Ethernet, I2C, SPI, USB, XGA |
| Moisture Sensitive: | Yes |
| Number of ADC Channels: | 24 Channel |
| Processor Series: | STM32F746xx |
| Product: | MCU+FPUs |
| Product Type: | ARM Microcontrollers - MCU |
| Program Memory Type: | Flash |
| 540 | |
| Subcategory: | Microcontrollers - MCU |
| Tradename: | STM32 |
| Watchdog Timers: | Watchdog Timer |
| Unit Weight: | 0.046530 oz |
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
