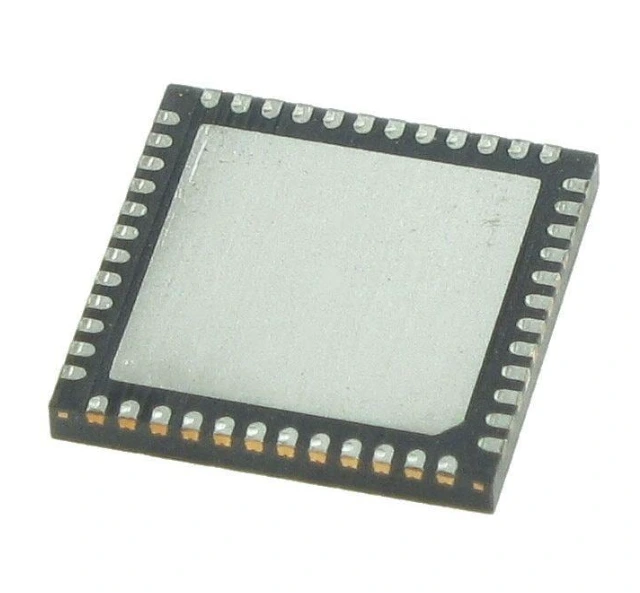

STM32WB55CEU6TR

Part number:

STM32WB55CEU6TR

Manufacturer::

STMicroelectronics

Factory Pack Quantity:

2500

Package/Case:

UFQFPN-48

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	STMicroelectronics
Product Category:	RF Microcontrollers - MCU
RoHS:	Details
Core:	ARM Cortex M4
Data Bus Width:	32 bit
Program Memory Size:	512 kB
Data RAM Size:	256 kB
Maximum Clock Frequency:	64 MHz
ADC Resolution:	12 bit
Supply Voltage - Min:	1.71 V
Supply Voltage - Max:	3.6 V
Maximum Operating Temperature:	+ 85 C
Package / Case:	UFQFPN-48
Mounting Style:	SMD/SMT
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	STMicroelectronics
Data RAM Type:	SRAM
Interface Type:	I2C, SPI, USART, USB
Minimum Operating Temperature:	- 40 C
Moisture Sensitive:	Yes
Number of ADC Channels:	13 Channel
Number of I/Os:	30 I/O
Operating Supply Voltage:	1.71 V to 3.6 V
Product Type:	RF Microcontrollers - MCU
Program Memory Type:	Flash
Series:	STM32WB
	2500
Subcategory:	Wireless & RF Integrated Circuits
Technology:	Si
Tradename:	STM32

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
