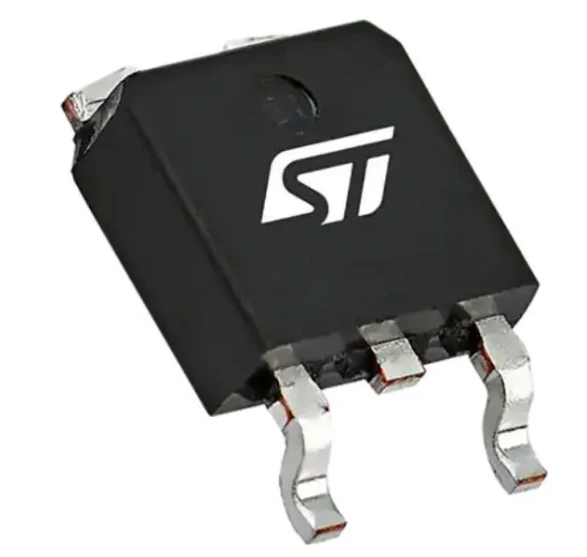

STTH30L06CG-TR
Part number:
STTH30L06CG-TR
Manufacturer::
STMicroelectronics
Factory Pack Quantity:
1000
Package/Case:
D2-PAK
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| STMicroelectronics | |
| Product Category: | Rectifiers |
| RoHS: | Details |
| SMD/SMT | |
| D2-PAK | |
| 600 V | |
| 20 A | |
| Fast Recovery Rectifiers | |
| Dual Anode Common Cathode | |
| 1.76 V | |
| 130 A | |
| 15 uA | |
| 55 ns | |
| - 65 C | |
| + 175 C | |
| STTH30L06C | |
| AEC-Q101 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | STMicroelectronics |
| Height: | 4.6 mm (Max) |
| Length: | 10.4 mm (Max) |
| Pd - Power Dissipation: | - |
| Product: | Rectifiers |
| Product Type: | Rectifiers |
| 1000 | |
| Subcategory: | Diodes & Rectifiers |
| Width: | 9.35 mm (Max) |
| Unit Weight: | 2 g |
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
