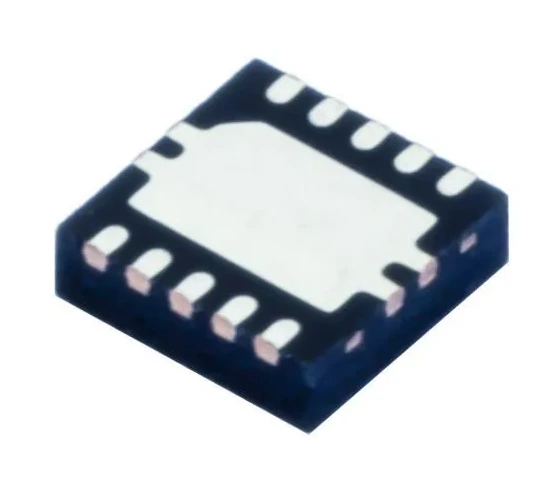

TPS54260DRCR
Switching Voltage Regulators 3.5V-60Vin,2.5A,2.5 MHz Step Down SWIFT
Manufacturer:
Texas Instruments
Product Category:
Switching Voltage Regulators
Package/Case:
SMD/SMT
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Switching Voltage Regulators |
| RoHS: | Details |
| 800 mV to 58 V | |
| 2.5 A | |
| 60 V | |
| 1 Output | |
| Buck | |
| VSON-10 | |
| SMD/SMT | |
| 581 kHz | |
| 138 uA | |
| - 40 C | |
| + 125 C | |
| TPS54260 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| 3.5 V | |
| Brand: | Texas Instruments |
| Development Kit: | TPS54260EVM-597 |
| Input Voltage: | 3.5 V to 60 V |
| Operating Supply Current: | 138 uA |
| Product: | Voltage Regulators |
| Product Type: | Switching Voltage Regulators |
| Factory Pack Quantity: | 3000 |
| Subcategory: | PMIC - Power Management ICs |
| Tradename: | SWIFT |
| Type: | Voltage Converter |
| Unit Weight: | 0.001058 oz |
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
