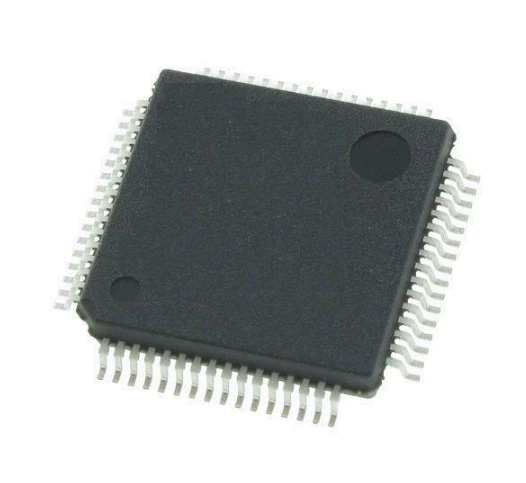

DSPIC33CH512MP506-I/PT
Part number:
dsPIC33CH512MP506-I/PT
Manufacturer::
Microchip
Factory Pack Quantity:
160
Package/Case:
TQFP-64
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Write a Review
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Microchip | |
| Product Category: | Digital Signal Processors & Controllers - DSP, DSC |
| DSCs | |
| dsPIC33CH | |
| 2 Core | |
| 180 MHz, 200 MHz | |
| TQFP-64 | |
| 512 kB | |
| 16 kB, 48 kB | |
| - | |
| - | |
| 3 V to 3.6 V | |
| dsPIC33CH512MP506 | |
| dsPIC | |
| SMD/SMT | |
| - 40 C | |
| + 85 C | |
| AEC-Q100 | |
| Tray | |
| Brand: | Microchip Technology |
| Data Bus Width: | 16 bit |
| Instruction Type: | Fixed/Floating Point |
| Interface Type: | CAN, I2C, I2S, SPI, UART |
| Moisture Sensitive: | Yes |
| Number of Timers/Counters: | 1 Timer |
| Product Type: | DSP - Digital Signal Processors & Controllers |
| Program Memory Type: | Flash |
| 160 | |
| Subcategory: | Embedded Processors & Controllers |
| Supply Voltage - Max: | 3.6 V |
| Supply Voltage - Min: | 3 V |
| Watchdog Timers: | Watchdog Timer |
| Unit Weight: | 0.116164 oz |
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
