VSC8572XKS-05

Part number:

VSC8572XKS-05

Manufacturer::

Microchip

Factory Pack Quantity:

Package/Case:

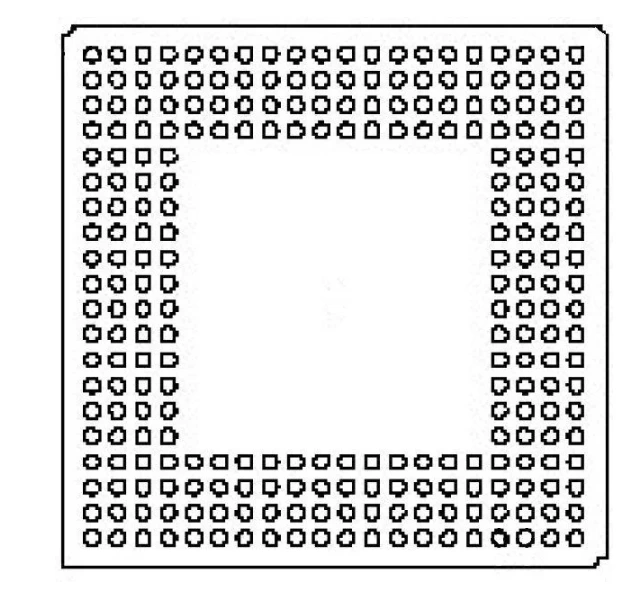

PBGA-256

Inquiry

Write a Review

Product Specifications

Product Attribute	Attribute Value

Manufacturer:	Microchip
Product Category:	Ethernet ICs
RoHS:	Details
Mounting Style:	SMD/SMT
Package / Case:	PBGA-256
Product:	Ethernet Transceivers
Standard:	10/1GBASE-T, 100BASE-TX/FX, 1GBASE-X
Number of Transceivers:	2 Transceiver
Data Rate:	10 Mb/s, 100 Mb/s, 1 Gb/s
Interface Type:	RGMII, SGMII
Supply Voltage - Min:	950 mV
Supply Voltage - Max:	1.05 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Series:	VSC8572
Packaging:	Tray
Brand:	Microchip Technology
Moisture Sensitive:	Yes
Product Type:	Ethernet ICs
	90
Subcategory:	Communication & Networking ICs
Unit Weight:	0.245081 oz

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
