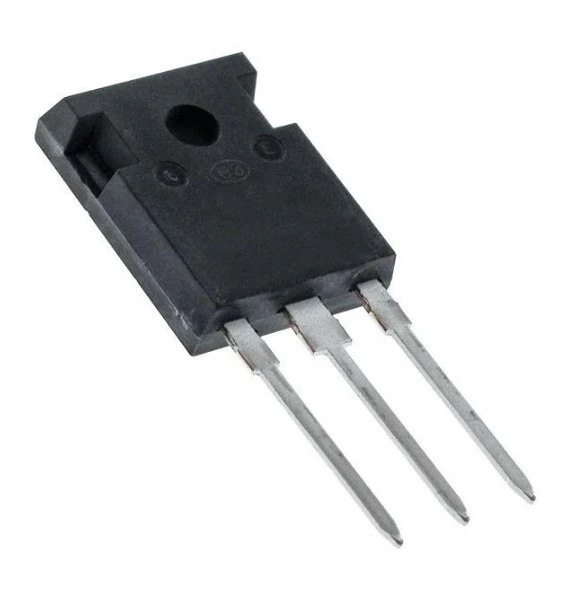

FGH50T65SQD-F155
Part number:
FGH50T65SQD-F155
Manufacturer::
onsemi
Factory Pack Quantity:
30
Package/Case:
TO-247-3
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Write a Review
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| onsemi | |
| Product Category: | IGBT Transistors |
| RoHS: | Details |
| REACH - SVHC: | |
| Si | |
| TO-247-3 | |
| Through Hole | |
| Single | |
| 650 V | |
| 1.6 V | |
| - 20 V, 20 V | |
| 100 A | |
| 268 W | |
| - 55 C | |
| + 175 C | |
| FGH50T65SQD | |
| Tube | |
| Brand: | onsemi / Fairchild |
| Continuous Collector Current Ic Max: | 100 A |
| Gate-Emitter Leakage Current: | +/- 400 nA |
| Product Type: | IGBT Transistors |
| 30 | |
| Subcategory: | IGBTs |
| Part # Aliases: | FGH50T65SQD_F155 |
| Unit Weight: | 0.225401 oz |
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
