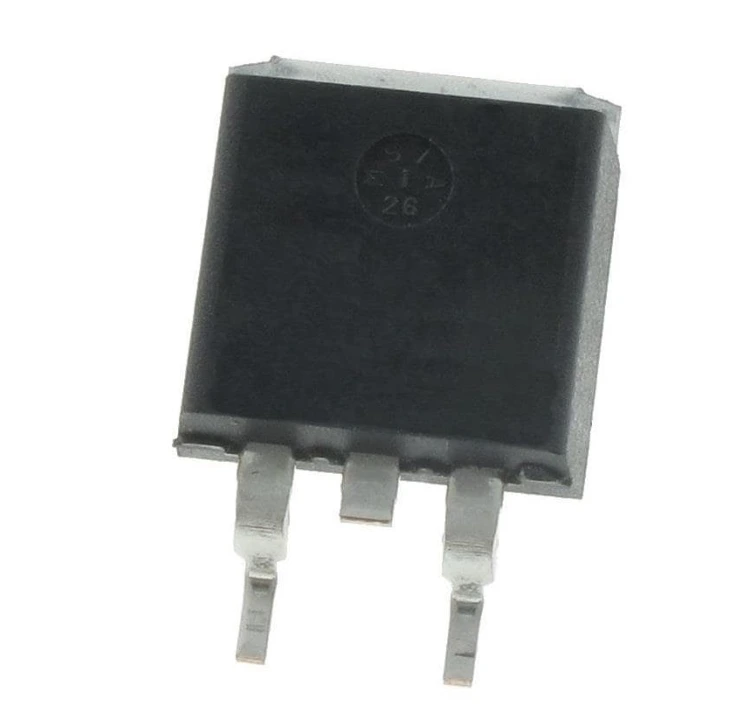

IPB200N25N3G
Part number:
IPB200N25N3G
Manufacturer::
Infineon
Factory Pack Quantity:
1000
Product Category:
MOSFET
Package/Case:
D2PAK-3 (TO-263-3)
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Infineon | |
| Product Category: | MOSFET |
| RoHS: | Details |
| REACH - SVHC: | |
| Si | |
| SMD/SMT | |
| D2PAK-3 (TO-263-3) | |
| N-Channel | |
| 1 Channel | |
| 250 V | |
| 64 A | |
| 17.5 mOhms | |
| - 20 V, + 20 V | |
| 2 V | |
| 86 nC | |
| - 55 C | |
| + 175 C | |
| 300 W | |
| Enhancement | |
| OptiMOS | |
| OptiMOS 3 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Infineon Technologies |
| Configuration: | Single |
| Fall Time: | 12 ns |
| Forward Transconductance - Min: | 61 S |
| Height: | 4.4 mm |
| Length: | 10 mm |
| Product Type: | MOSFET |
| Rise Time: | 20 ns |
| 1000 | |
| Subcategory: | MOSFETs |
| Transistor Type: | 1 N-Channel |
| Type: | OptiMOS 3 Power-Transistor |
| Typical Turn-Off Delay Time: | 45 ns |
| Typical Turn-On Delay Time: | 18 ns |
| Width: | 9.25 mm |
| Part # Aliases: | SP000677896 IPB2N25N3GXT IPB200N25N3GATMA1 |
| Unit Weight: | 0.139332 oz |
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
