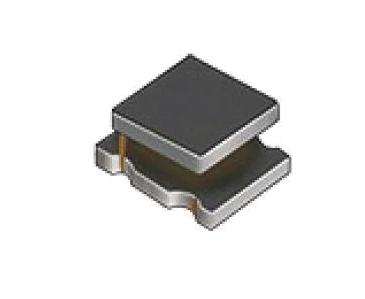

LQH43PH1R0N26L
Part number:
LQH43PH1R0N26L
Manufacturer::
Murata
Factory Pack Quantity:
500
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Write a Review
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Murata | |
| Product Category: | Power Inductors - SMD |
| RoHS: | Details |
| Power Inductor | |
| SMD/SMT | |
| 1812 (4532 metric) | |
| Shielded | |
| 1 uH | |
| 30 % | |
| 3.3 A | |
| 26 mOhms | |
| 3.4 A | |
| - 40 C | |
| + 105 C | |
| - | |
| PCB Mount | |
| 4.5 mm | |
| 3.2 mm | |
| 2.6 mm | |
| - | |
| Ferrite | |
| AEC-Q200 | |
| LQH | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Application: | Automotive |
| Brand: | Murata Electronics |
| Case Code - in: | 1812 |
| Case Code - mm: | 4532 |
| Core Type: | Wirewound |
| Product: | Power Inductors |
| Product Type: | Power Inductors - SMD |
| Self Resonant Frequency: | 100 MHz |
| 500 | |
| Subcategory: | Inductors, Chokes & Coils |
| Termination: | Standard |
| Test Frequency: | 1 MHz |
| Part # Aliases: | EKDMAT02-KIT |
| Unit Weight: | 0.004586 oz |
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
