Communication Integrated Circuits Texas Instruments Switching Voltage Regulators SMD/SMT Brand

Manufacturer:

Texas Instruments

Product Category:

Switching Voltage Regulators

Package/Case:

SMD/SMT

Inquiry

Product details of the communication integrated circuits

Product Overview

communication integrated circuits is designed perfectly and made with best materials. Every aspect of the product is strictly tested to meet international quality standards. Shenzhen Shenming Electronic technology Co., Ltd possesses the world first-class technical level and service capability.

Product Introduction

The specific details of communication integrated circuits are presented below.

Product Specifications

Product Attribute	Attribute Value
Manufacturer:	Texas Instruments
Product Category:	Switching Voltage Regulators
RoHS:	Details
Output Voltage:	800 mV to 58 V
Output Current:	2.5 A
Input Voltage, Max:	60 V
Number of Outputs:	1 Output
Topology:	Buck

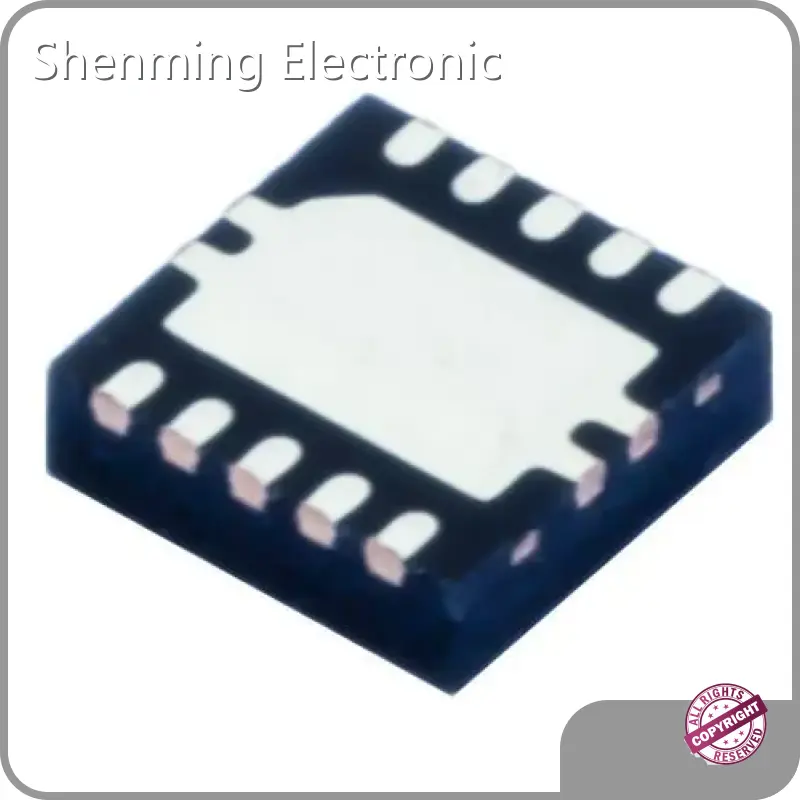

Package / Case:	VSON-10
Mounting Style:	SMD/SMT
Switching Frequency:	581 kHz
Quiescent Current:	138 uA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Series:	TPS54260
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Input Voltage, Min:	3.5 V
Brand:	Texas Instruments
Development Kit:	TPS54260EVM-597
Input Voltage:	3.5 V to 60 V
Operating Supply Current:	138 uA
Product:	Voltage Regulators
Product Type:	Switching Voltage Regulators
Factory Pack Quantity:	3000
Subcategory:	PMIC - Power Management ICs
Tradename:	SWIFT
Type:	Voltage Converter
Unit Weight:	0.001058 oz

FAQ

What is a "short circuit"?

A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one. For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.

What is a schematic?

It is another name for a circuit diagram.

What does "open circuit" mean?

"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
