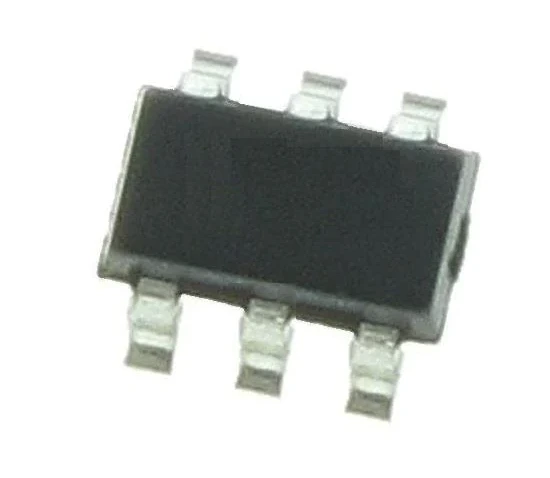

ZXMP10A17E6TA
Part number:
ZXMP10A17E6TA
Manufacturer::
Diodes Incorporated
Factory Pack Quantity:
3000
Product Category:
MOSFET
Package/Case:
SOT-26-6
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Diodes Incorporated | |
| Product Category: | MOSFET |
| RoHS: | Details |
| Si | |
| SMD/SMT | |
| SOT-26-6 | |
| P-Channel | |
| 1 Channel | |
| 100 V | |
| 1.6 A | |
| 350 mOhms | |
| - 20 V, + 20 V | |
| 2 V | |
| 10.7 nC | |
| - 55 C | |
| + 150 C | |
| 1.7 W | |
| Enhancement | |
| ZXMP10A | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Diodes Incorporated |
| Configuration: | Single |
| Fall Time: | 7.2 ns |
| Forward Transconductance - Min: | 2.8 S |
| Height: | 1.3 mm |
| Length: | 3.1 mm |
| Product Type: | MOSFET |
| Rise Time: | 3.5 ns |
| 3000 | |
| Subcategory: | MOSFETs |
| Transistor Type: | 1 P-Channel |
| Typical Turn-Off Delay Time: | 13.4 ns |
| Typical Turn-On Delay Time: | 3 ns |
| Width: | 1.8 mm |
| Unit Weight: | 0.000529 oz |
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
