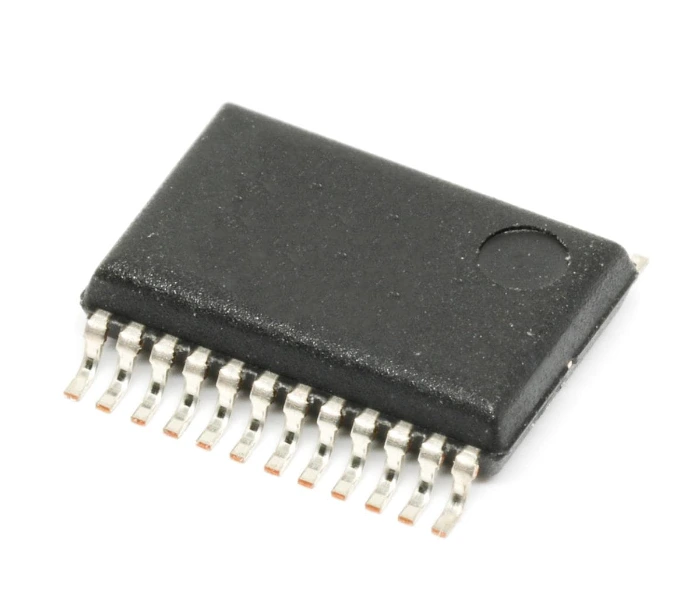

AD7731BRZ-REEL
Part number:
AD7731BRZ-REEL
Manufacturer::
Analog Devices Inc.
Factory Pack Quantity:
1000
Package/Case:
SOIC-24
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Write a Review
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Analog Devices Inc. | |
| Product Category: | Analog to Digital Converters - ADC |
| RoHS: | Details |
| AD7731 | |
| SMD/SMT | |
| SOIC-24 | |
| 24 bit | |
| 3 Channel | |
| SPI | |
| 6.4 kS/s | |
| Differential/Pseudo-Differential | |
| Sigma-Delta | |
| 5 V | |
| 2.7 V to 5.25 V | |
| - 40 C | |
| + 85 C | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Analog Devices |
| Development Kit: | EVAL-AD7731EBZ |
| Height: | 2.35 mm |
| INL - Integral Nonlinearity: | 15 ppm |
| Input Voltage: | 0.02 V/0.04 V/0.08 V/0.16 V/0.32 V/0.64 V/1.28 V, n++0.02 V/n++0.04 V/n++0.08 V/n++0.16 V/n++0.32 V/n++0.64 V/n++1.28 V |
| Length: | 15.6 mm |
| Number of ADC Inputs: | 5 Input/3 Input |
| Number of Converters: | 1 Converter |
| Operating Supply Voltage: | 5 V |
| Pd - Power Dissipation: | 67.5 mW |
| Product Type: | ADCs - Analog to Digital Converters |
| Reference Type: | External |
| Sample and Hold: | No |
| 1000 | |
| Subcategory: | Data Converter ICs |
| Supply Voltage - Max: | 5 V |
| Supply Voltage - Min: | 5 V |
| Width: | 7.6 mm |
| Unit Weight: | 0.038731 oz |
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
