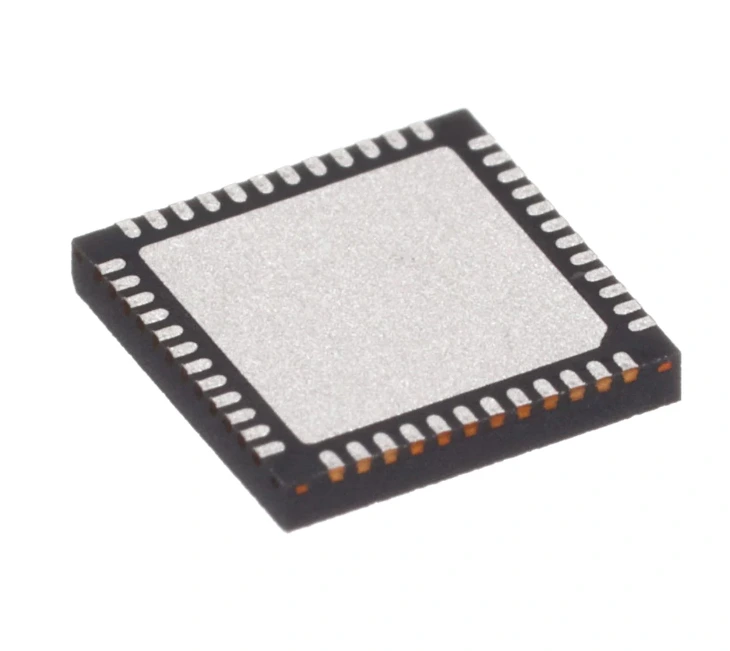

HMCAD1511TR
Part number:
HMCAD1511TR
Manufacturer::
Analog Devices Inc.
Factory Pack Quantity:
500
Package/Case:
QFN-48
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Write a Review
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Analog Devices Inc. | |
| Product Category: | Analog to Digital Converters - ADC |
| RoHS: | Details |
| HMCAD1511 | |
| SMD/SMT | |
| QFN-48 | |
| 8 bit | |
| 1 Channel | |
| SPI | |
| 1 GS/s | |
| Differential | |
| Pipeline | |
| 1.8 V | |
| 1.8 V | |
| 49.9 dB | |
| - 40 C | |
| + 85 C | |
| Reel | |
| Brand: | Analog Devices |
| Moisture Sensitive: | Yes |
| Number of Converters: | 4 Converter |
| Operating Supply Voltage: | 1.8 V |
| Pd - Power Dissipation: | 710 mW |
| Product Type: | ADCs - Analog to Digital Converters |
| Reference Type: | Internal |
| Reference Voltage: | 1 V |
| 500 | |
| Subcategory: | Data Converter ICs |
| Supply Voltage - Max: | 1.8 V |
| Supply Voltage - Min: | 1.8 V |
| Type: | Multiplexed ADC |
| Unit Weight: | 0.005309 oz |
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
