DAC38RF83IAAV

Part number:

DAC38RF83IAAV

Manufacturer::

Texas Instruments

Factory Pack Quantity:

168

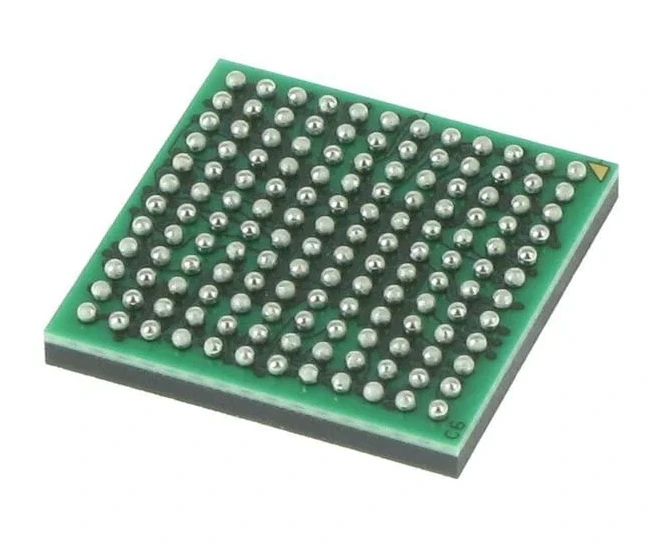

Package/Case:

FCBGA-144

Product Attribute	Attribute Value
Manufacturer:	Texas Instruments
Product Category:	Digital to Analog Converters - DAC
RoHS:
Series:	DAC38RF83
Resolution:	14 bit
Sampling Rate:	9 GS/s
Number of Channels:	2 Channel
Settling Time:	1 ns
Output Type:	Voltage
Interface Type:	JESD204B
Analog Supply Voltage:	1 V, 1.8 V
Digital Supply Voltage:	1 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Mounting Style:	SMD/SMT
Package / Case:	FCBGA-144
Packaging:	Tray
Architecture:	Current Steering
Brand:	Texas Instruments
Development Kit:	DAC38RF82EVM
DNL - Differential Nonlinearity:	+/- 3 LSB
Features:	Ultra High Speed
Gain Error:	2 % FSR
INL - Integral Nonlinearity:	+/- 4 LSB
Moisture Sensitive:	Yes
Number of Converters:	2 Converter
Operating Supply Current:	+/- 1.478 A, +/- 1.51 A
Pd - Power Dissipation:	4.894 W
Power Consumption:	3.8 W
Product Type:	DACs - Digital to Analog Converters
Reference Type:	External, Internal
Reference Voltage:	900 mV
SFDR - Spurious Free Dynamic Range:	72 dB
Shutdown:	No Shutdown
	168
Subcategory:	Data Converter ICs
Supply Voltage - Max:	- 1.71 V, 1.05 V, 1.89 V
Supply Voltage - Min:	- 1.89 V, 950 mV, 1.71 V
Type:	RF DAC
Unit Weight:	0.012025 oz
