A leading professional service provider focusing on the global semiconductor distribution industry.
KLM8G1GETF-B041009
Part number:

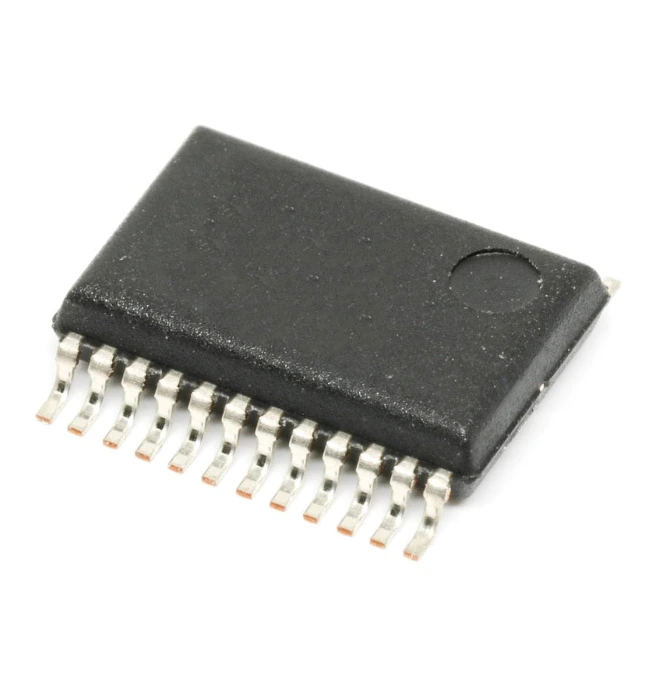

AD7710ARZ-REEL7
Manufacturer::
Analog Devices Inc.
Factory Pack Quantity:
400
Package/Case:
SOIC-24
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Write a Review
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Analog Devices Inc. | |
| Product Category: | Analog to Digital Converters - ADC |
| RoHS: | Details |
| AD7710 | |
| SMD/SMT | |
| SOIC-24 | |
| 24 bit | |
| 2 Channel | |
| Serial | |
| 1.028 kS/s | |
| Differential | |
| Sigma-Delta | |
| 5 V to 10 V | |
| 5 V | |
| 131 dB | |
| - 55 C | |
| + 125 C | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Analog Devices |
| Gain Error: | +/- 0.006 %FSR |
| Height: | 2.35 mm |
| INL - Integral Nonlinearity: | +/- 0.003 % FSR |
| Input Voltage: | 5 V, +/- 5 V |
| Length: | 15.6 mm |
| Moisture Sensitive: | Yes |
| Number of ADC Inputs: | 2 Input |
| Number of Converters: | 1 Converter |
| Operating Supply Voltage: | 5 V |
| Pd - Power Dissipation: | 53 mW |
| Power Consumption: | 30 mW |
| Product Type: | ADCs - Analog to Digital Converters |
| Reference Type: | External, Internal |
| Sample and Hold: | Yes |
| 400 | |
| Subcategory: | Data Converter ICs |
| Supply Voltage - Max: | 5 V |
| Supply Voltage - Min: | 5 V |
| Type: | S/H ADC |
| Width: | 7.6 mm |
| Unit Weight: | 0.038731 oz |
FAQ
1
What is a "short circuit"?
A "short circuit" is an unwanted connection of very low resistance such as a wire (almost 0) which provides a very easy path for current. Think of it as an electrical short-cut. It is normally used to describe a fault or accidental connection rather than a deliberate one.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
For example: if the leads from a battery touch one another they create a very low resistance connection across the battery, so we say they have caused a short circuit across the battery. Current will flow through this short circuit rather than through the proper circuit. This stops the circuit working and it may cause a fire because the leads and battery will become hot with a large current flowing.
2
What is a schematic?
It is another name for a circuit diagram.
3
What does "open circuit" mean?
"Open circuit" means no connection. It is usually used to describe a break in some part of a circuit which could be deliberate (such as a switch in the open or off position) or a fault (such as a broken wire or burnt out component).
